File:Acorn Archimedes A4000 circuit diagram (1 of 3).png
Size of this preview: 800 × 565 pixels. Other resolutions: 2,560 × 1,808 pixels | 3,200 × 2,260 pixels.
Original file (3,200 × 2,260 pixels, file size: 1.24 MB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

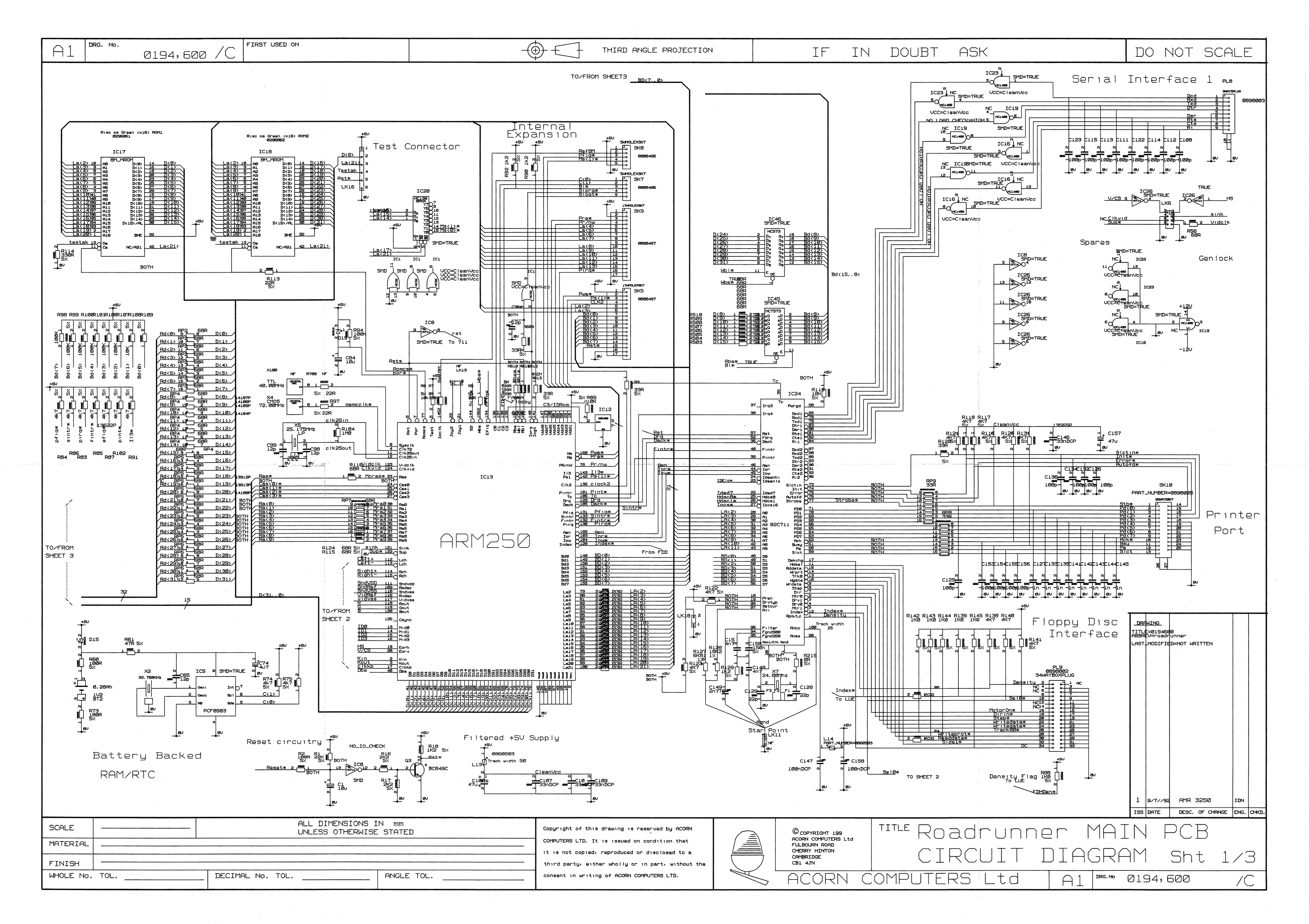

Roadrunner Main PCB Circuit Diagram, sheet 1 of 3, Acorn drawing 0194,600/C: the Acorn Archimedes A4000 main board, from the A3010/A3020/A4000 Technical Reference Manual drawings. Greyscale scan downscaled to 3,200 × 2,260 pixels.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Chris's Acorns (Chris Whytehead's collection, The Centre for Computing History), as recorded at upload.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Acorn Computers Limited.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Acorn Computers Limited. Not freely licensed. Hosted for preservation and repair reference.
