File:Apple LaserWriter IIf IO board diagram.png

Size of this preview: 800 × 467 pixels. Other resolution: 1,298 × 757 pixels.

Original file (1,298 × 757 pixels, file size: 15 KB, MIME type: image/png)

Summary

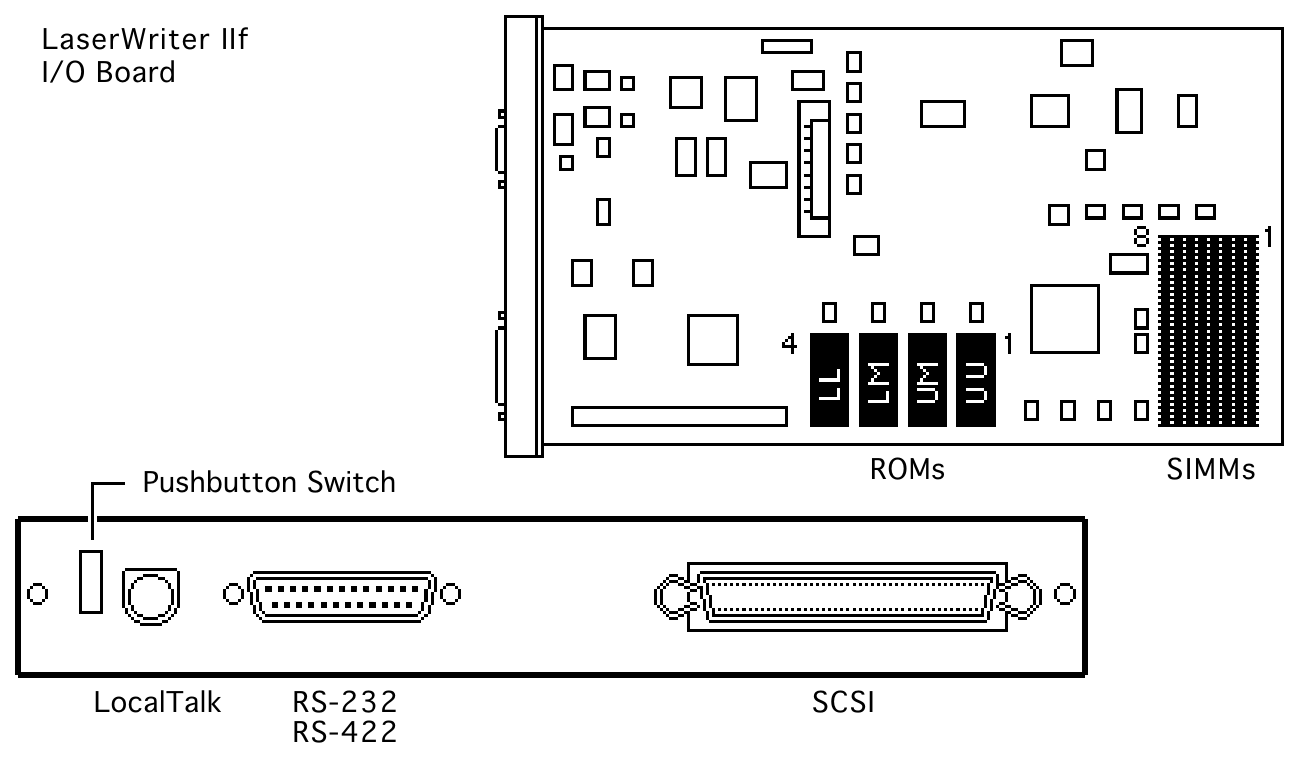

Apple's locator drawing of the LaserWriter IIf I/O board and back panel: ROM sockets LL, LM, UM and UU, SIMM sockets 1-8, pushbutton switch, LocalTalk, RS-232/RS-422 and SCSI. Rendered from the LaserWriter II Service Source, Troubleshooting, Circuit Board Diagrams p. 15 (PDF p. 43), with the page header and navigation arrow removed.

Source

Apple Computer, Inc., LaserWriter II Service Source (225 pp.), hosted on this wiki as File:Laserwriter ii.pdf (see LaserWriter II Service Source), PDF p. 43. Rendered at 220 dpi on 2026-10-02.

Author

Apple Computer, Inc.

Licence

Copyright Apple Computer, Inc. Hosted for preservation and repair reference, with the source cited.
