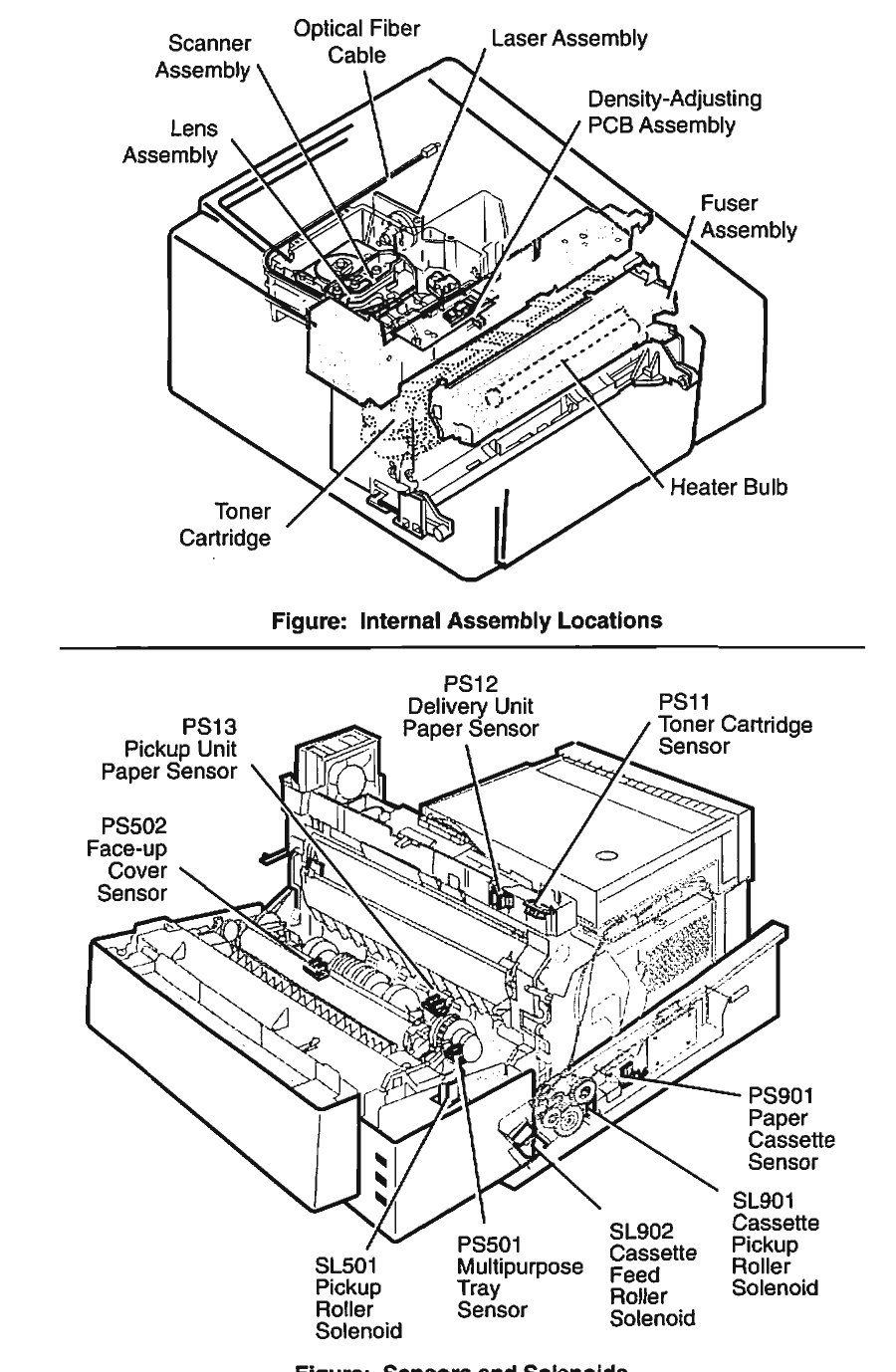

Apple service drawings of the Personal LaserWriter SC, NT and LS: the internal assembly locations (scanner, lens and laser assemblies, optical fibre cable, density-adjusting PCB, fuser assembly and heater bulb, toner cartridge) and the sensors and solenoids (PS11 toner cartridge sensor, PS12 delivery unit paper sensor, PS13 pickup unit paper sensor, PS501 multipurpose tray sensor, PS502 face-up cover sensor, PS901 paper cassette sensor, and solenoids SL501, SL901 and SL902).
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Cropped from Apple Computer, Inc., Apple Service Guide for LaserWriter Printers, Volume I (072-0631-B, January 1992), Personal LaserWriter tab, Major Assemblies, p. 7, hosted as File:Apple LaserWriter Printers Volume I.pdf (PDF p. 147). Rendered at 200 dpi.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Hosted for preservation and repair reference, with the source cited.
