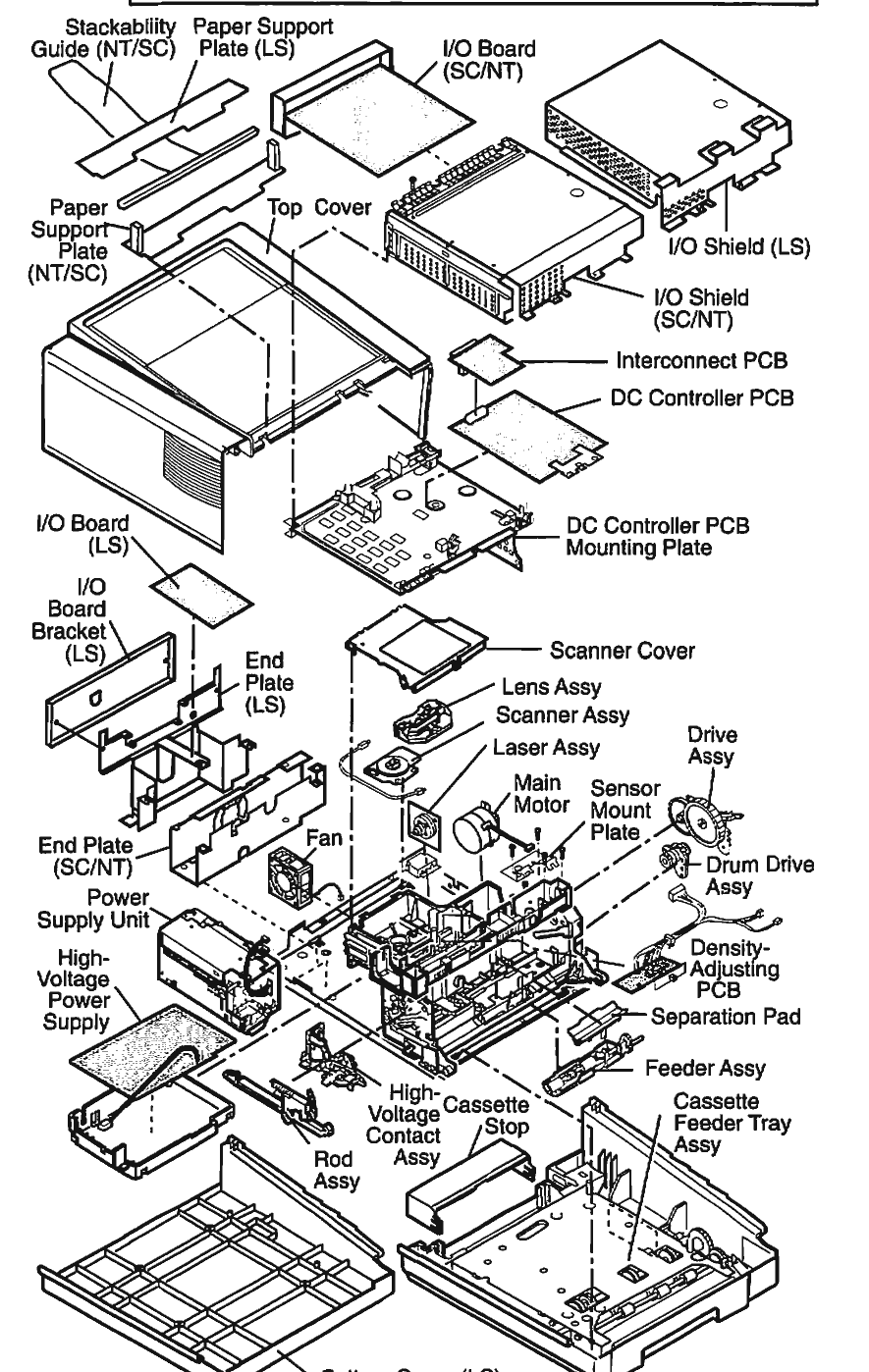

Apple exploded-view drawing of the Personal LaserWriter SC, NT and LS, naming the covers, I/O boards and shields for each model, DC controller PCB, scanner, lens and laser assemblies, main motor, power supply unit, high-voltage power supply, high-voltage contact assembly and cassette feeder.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Cropped from Apple Computer, Inc., Apple Service Guide for LaserWriter Printers, Volume I (072-0631-B, January 1992), Personal LaserWriter tab, Exploded View, p. 2, hosted as File:Apple LaserWriter Printers Volume I.pdf (PDF p. 142). Rendered at 200 dpi.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
