File:Atari 130XE POKEY serial lines to SIO J1 (C070065 schematic).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

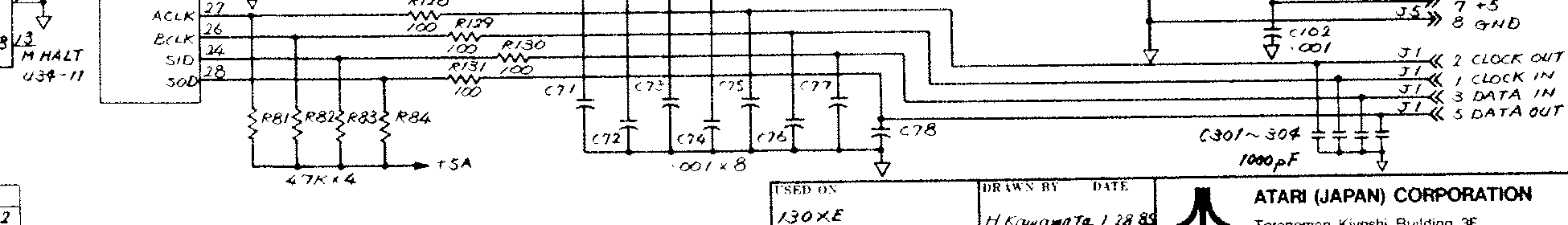

Detail of Atari's 130XE schematic: POKEY U22's serial pins ACLK (27), BCLK (26), SID (24) and SOD (28) through 100 Ω resistors R128-R131 to SIO socket J1 pins 2 (clock out), 1 (clock in), 3 (data in) and 5 (data out), with R81-R84 to +5A (marked 47 kΩ on the schematic; the parts list groups R81-84 with the 4.7 kΩ resistors) and filter capacitors.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:Atari 130XE Parts List and Production Test Instructions.pdf (Atari's 130XE Reference Manual), PDF page 14, the schematic diagram C070065 Rev. B drawn by Atari (Japan) Corporation in 1985, at the scan's 300 dpi, and cropped.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari (Japan) Corporation for Atari Corp.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari Corp. Hosted for preservation and repair reference, with the source cited.
