File:Atari 130XE board layout, RAM area (C070067).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

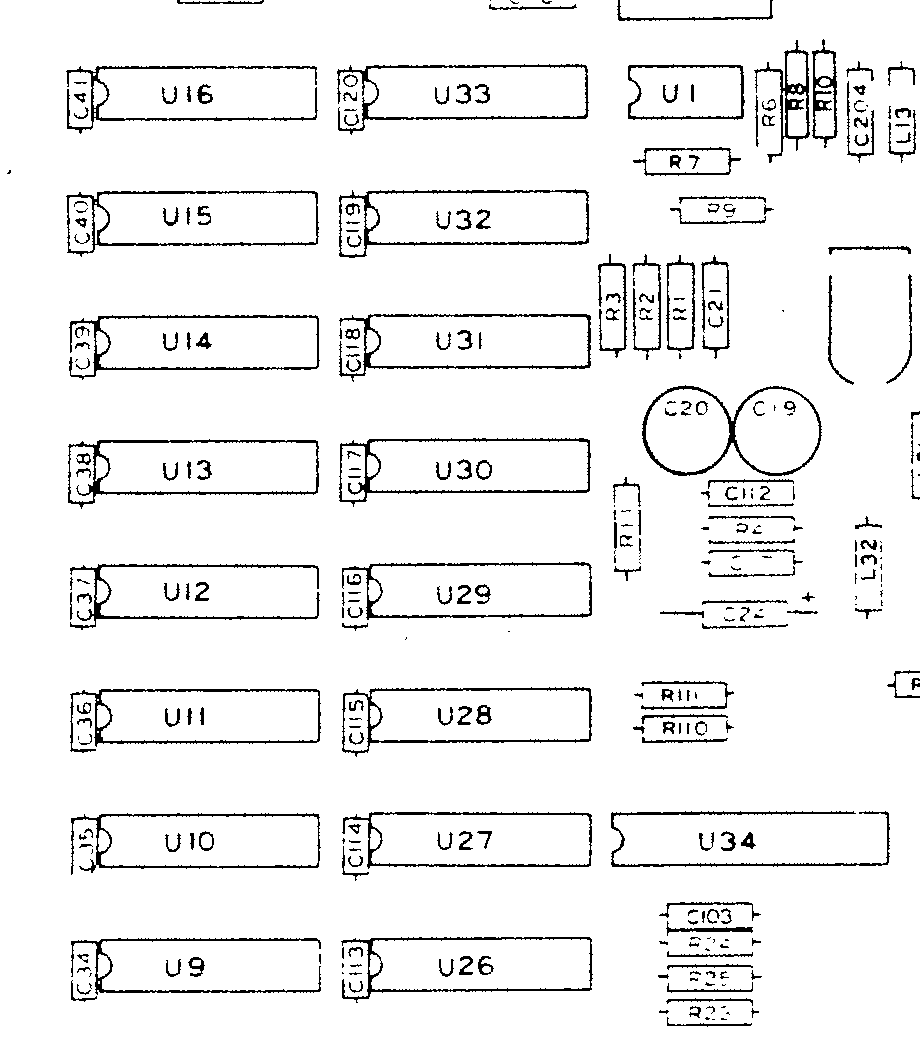

Detail of Atari's 130XE board drawing C070067: the main DRAM U9-U16 (left column) with decoupling capacitors C34-C41, the extended DRAM U26-U33 (right column) with C113-C120, the gate array U34, R110 and R111, and the audio amplifier U1 with R1-R11, C19, C20 and C24.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:Atari 130XE Parts List and Production Test Instructions.pdf (Atari's 130XE Reference Manual), PDF page 12, drawing C070067 Rev. A, P.C.B., sheet 1 of 5 (silk print), dated April 1985, at the scan's 300 dpi, and cropped.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari (Japan) Corporation for Atari Corp.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari Corp. Hosted for preservation and repair reference, with the source cited.
