File:Atari 130XE power input and +5V rails (C070065 schematic).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

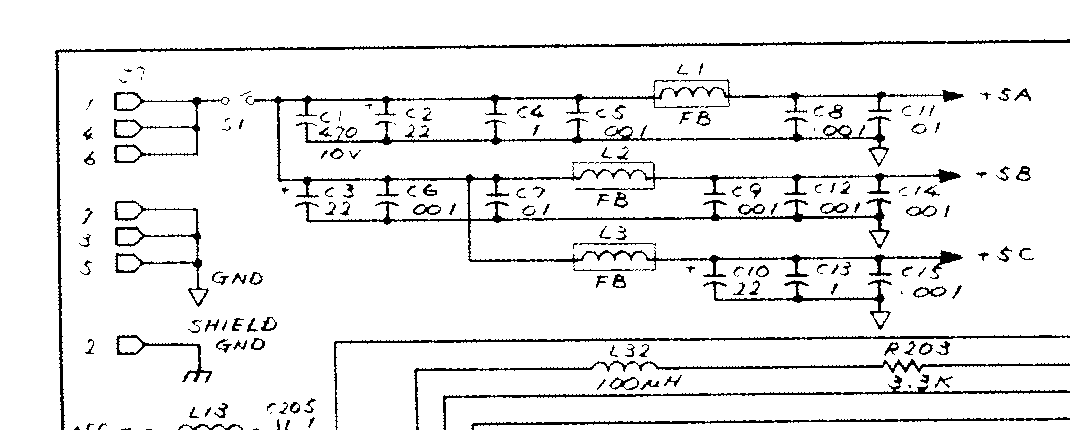

Detail of Atari's 130XE schematic: the 7-pin power socket J7 (pins 1, 4 and 6 +5 V; 3, 5 and 7 ground; 2 shield ground), the power switch S1, C1 (470 µF 10 V) and C2 (22 µF), and the three filtered rails +5A, +5B and +5C, each through a ferrite bead (L1, L2, L3) with its own decoupling capacitors.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:Atari 130XE Parts List and Production Test Instructions.pdf (Atari's 130XE Reference Manual), PDF page 14, the schematic diagram C070065 Rev. B drawn by Atari (Japan) Corporation in 1985, at the scan's 300 dpi, and cropped.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari (Japan) Corporation for Atari Corp.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari Corp. Hosted for preservation and repair reference, with the source cited.
