File:Atari 130XE video output and colour circuits (C070065 schematic).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

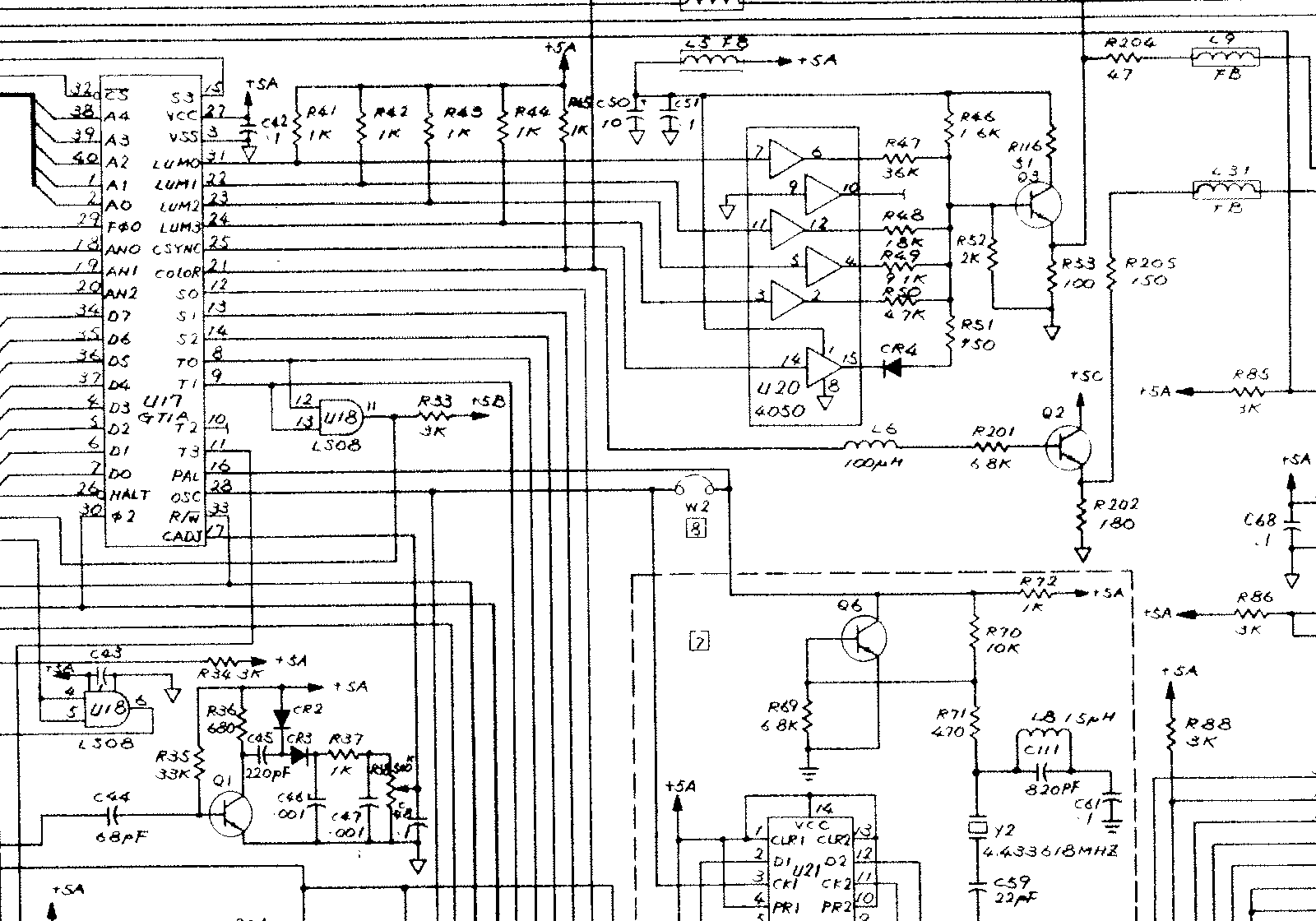

Detail of Atari's 130XE schematic: the GTIA U17 luminance outputs LUM0-LUM3 (pins 31, 22, 23, 24) and composite sync (pin 25) feeding the CD4050 buffer U20, the resistor ladder R47-R51, diode CR4 and the video amplifier Q3; the colour output (pin 21) through L6 and R201 to Q2; the colour adjustment circuit with Q1, R35-R37 and the 500 kΩ control R38 feeding GTIA pin 17; and the PAL colour circuit (Q6, Y2, U21) inside the dashed box.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:Atari 130XE Parts List and Production Test Instructions.pdf (Atari's 130XE Reference Manual), PDF page 14, the schematic diagram C070065 Rev. B drawn by Atari (Japan) Corporation in 1985, at the scan's 300 dpi, and cropped.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari (Japan) Corporation for Atari Corp.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari Corp. Hosted for preservation and repair reference, with the source cited.
