File:Atari 2600 Jr motherboard power section (C26, S4, VR1).jpg
Summary
[edit | edit source].jpg&veaction=edit§ion=1){kind=link}
.jpg&action=edit§ion=1){kind=link}

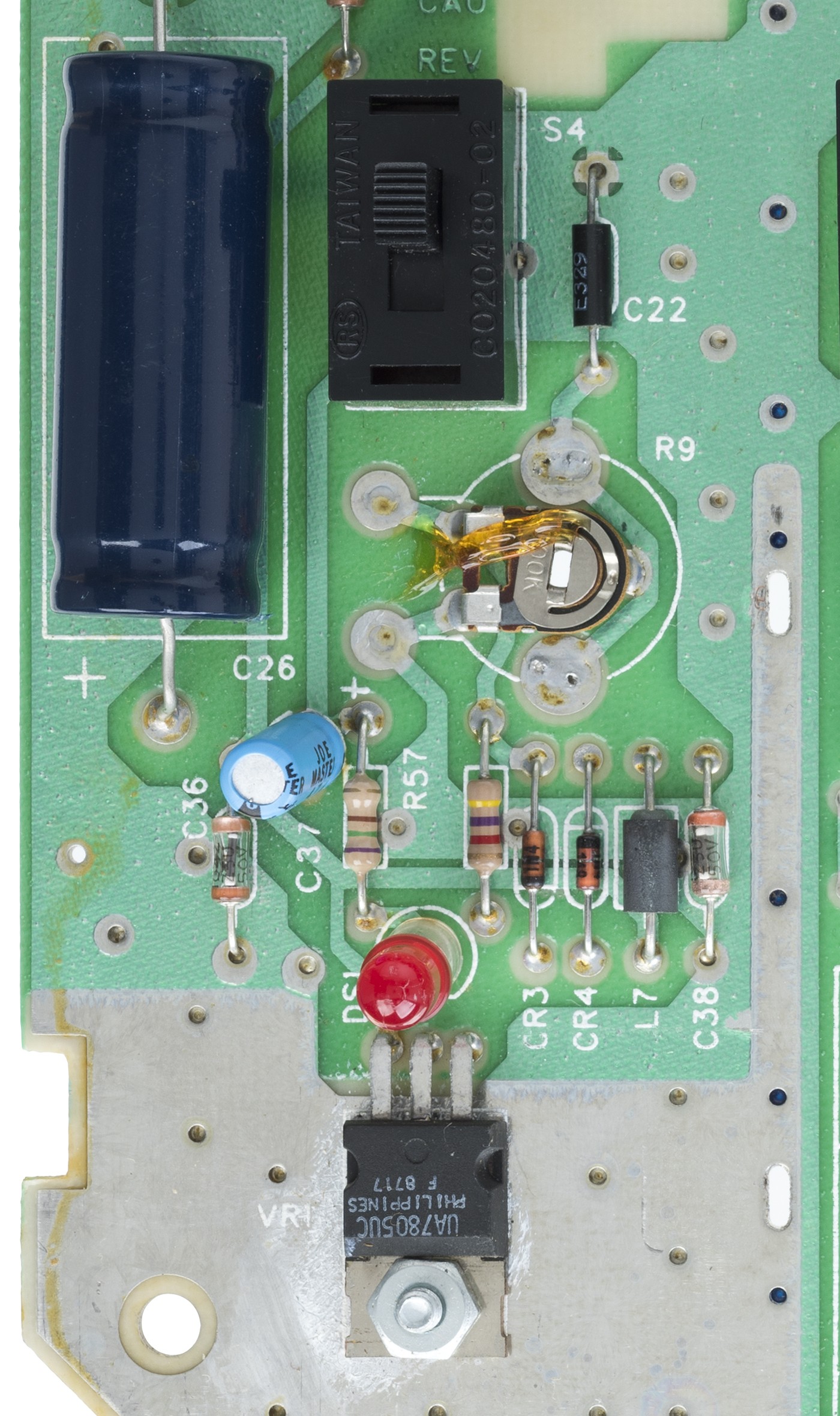

Crop of an NTSC Atari 2600 Jr. motherboard (board silkscreened "Atari © 1983") showing the power section at the left-hand end: the 2200 µF reservoir C26 (large blue axial capacitor), the power switch S4 (marked C020480-02), the colour trimmer R9, C36, C37 (blue radial electrolytic), R57, the red power LED DS1 and the regulator VR1 (UA7805UC) screwed to the tinned pad at the bottom.
Source
[edit | edit source].jpg&veaction=edit§ion=2){kind=link}
.jpg&action=edit§ion=2){kind=link}
Cropped at full resolution from File:Atari-2600-Jr-Motherboard-Flat.jpg, which is byte-identical to the Wikimedia Commons file File:Atari-2600-Jr-Motherboard-Flat.jpg.
Author
[edit | edit source].jpg&veaction=edit§ion=3){kind=link}
.jpg&action=edit§ion=3){kind=link}
Evan-Amos
Licence
[edit | edit source].jpg&veaction=edit§ion=4){kind=link}
.jpg&action=edit§ion=4){kind=link}
Public domain (released by the author on Wikimedia Commons).
