File:Atari 2600 six-switch motherboard 4050 buffer A203 area.jpg
Size of this preview: 800 × 576 pixels. Other resolution: 1,600 × 1,151 pixels.
Original file (1,600 × 1,151 pixels, file size: 393 KB, MIME type: image/jpeg)
Summary
[edit | edit source]

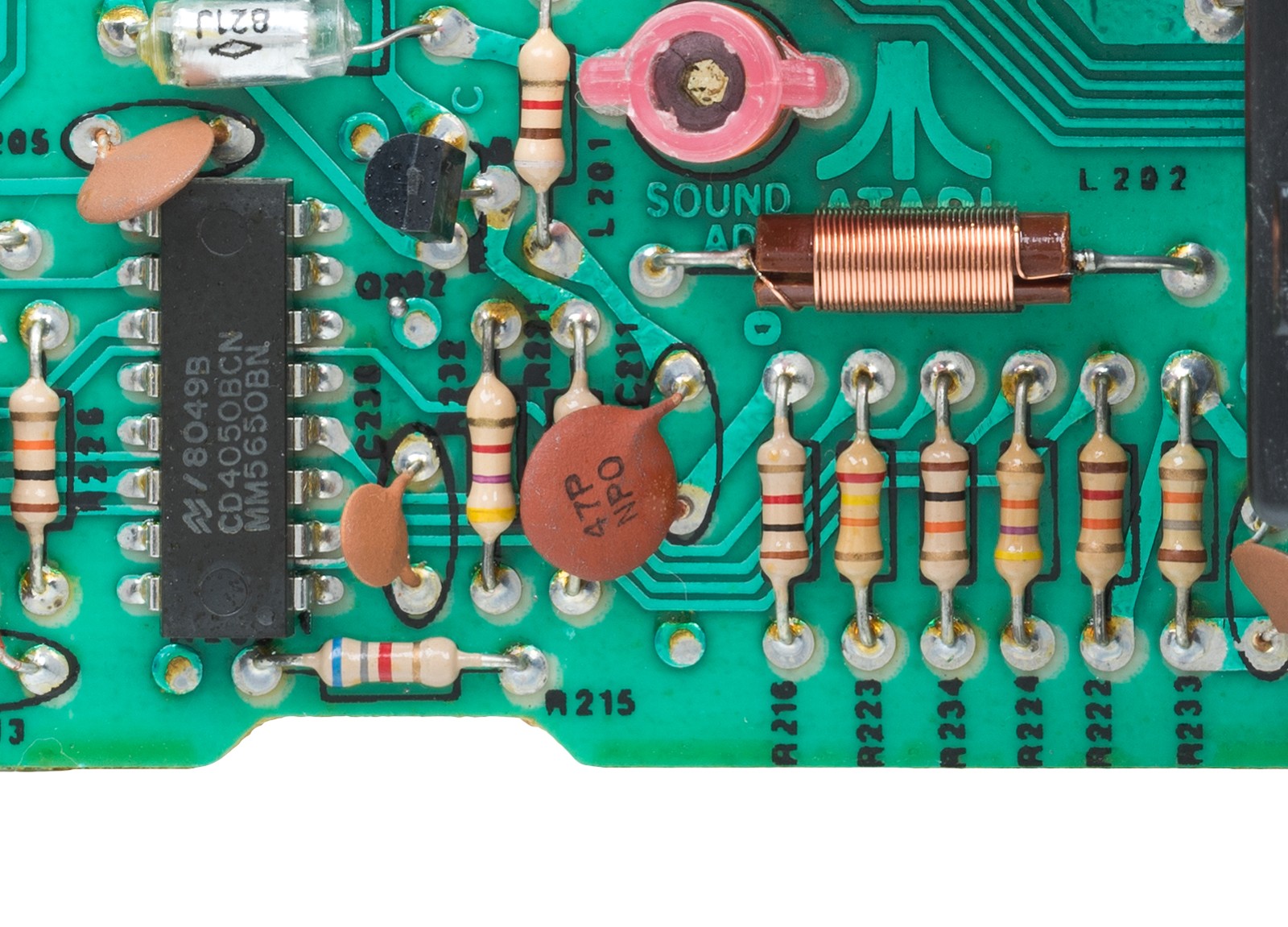

Crop of a six-switch Atari 2600 (CX2600) motherboard showing the CD4050BCN hex buffer soldered in at A203, the sound coil L201 marked SOUND ADJ, the inductor L202, transistor Q202 and resistors R215, R216 and R222 to R234.
