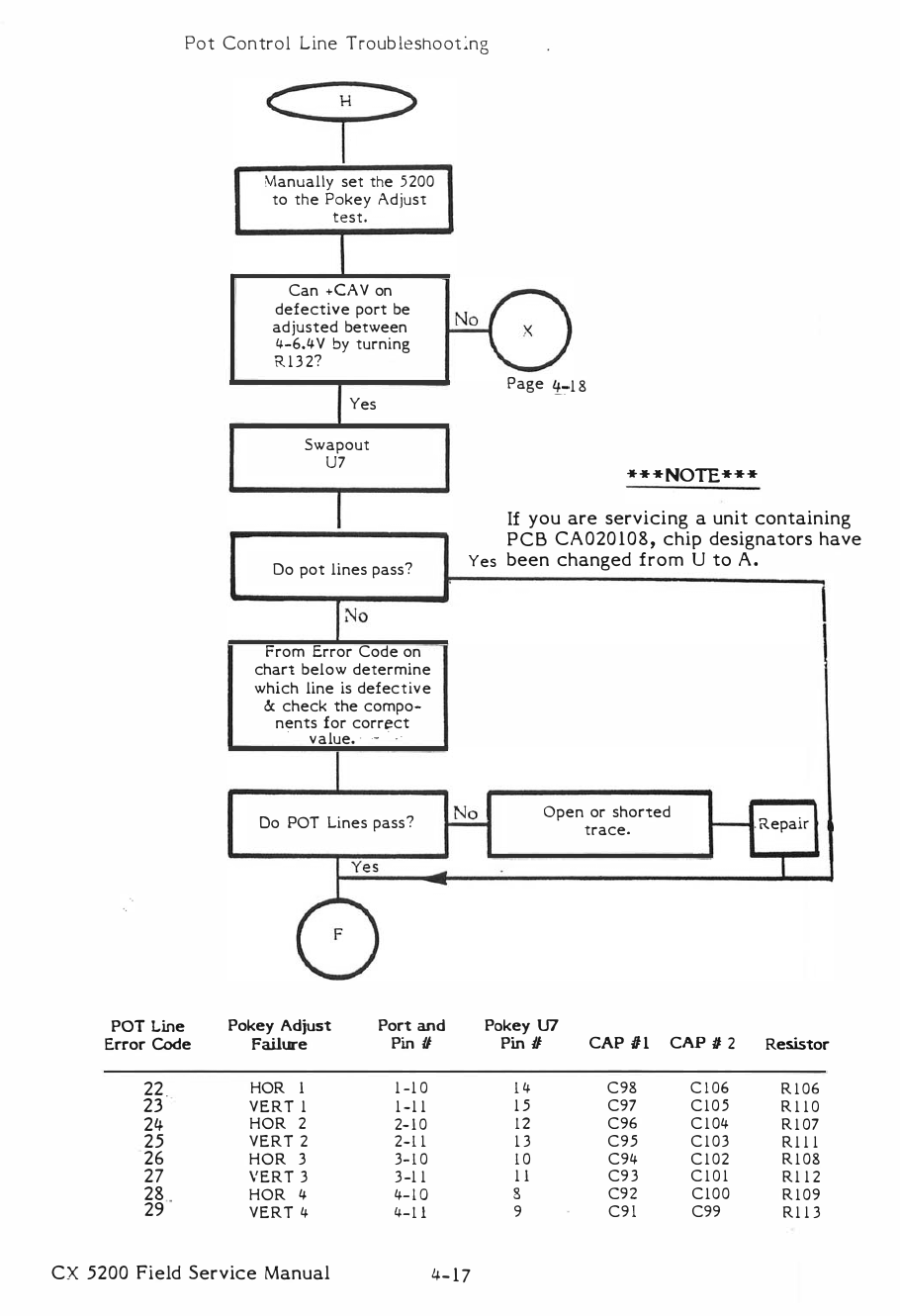

Atari's four-port pot control line troubleshooting flowchart, first page: adjusting +CAV with R132 on the Pokey Adjust screen, swapping U7, and the table of pot line error codes 22 to 29 with their port pins, POKEY (U7) pins, capacitors and resistors.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered with pdftoppm from the Atari CX5200 Field Service Manual (PDF), Atari, Inc., FD100127 Rev. 4, July 1983, PDF page 74 (manual p. 4-17).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
