File:Atari 5200 pot control line flowchart (FSM p. 4-18).png
Size of this preview: 445 × 599 pixels. Other resolution: 980 × 1,320 pixels.
Original file (980 × 1,320 pixels, file size: 295 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

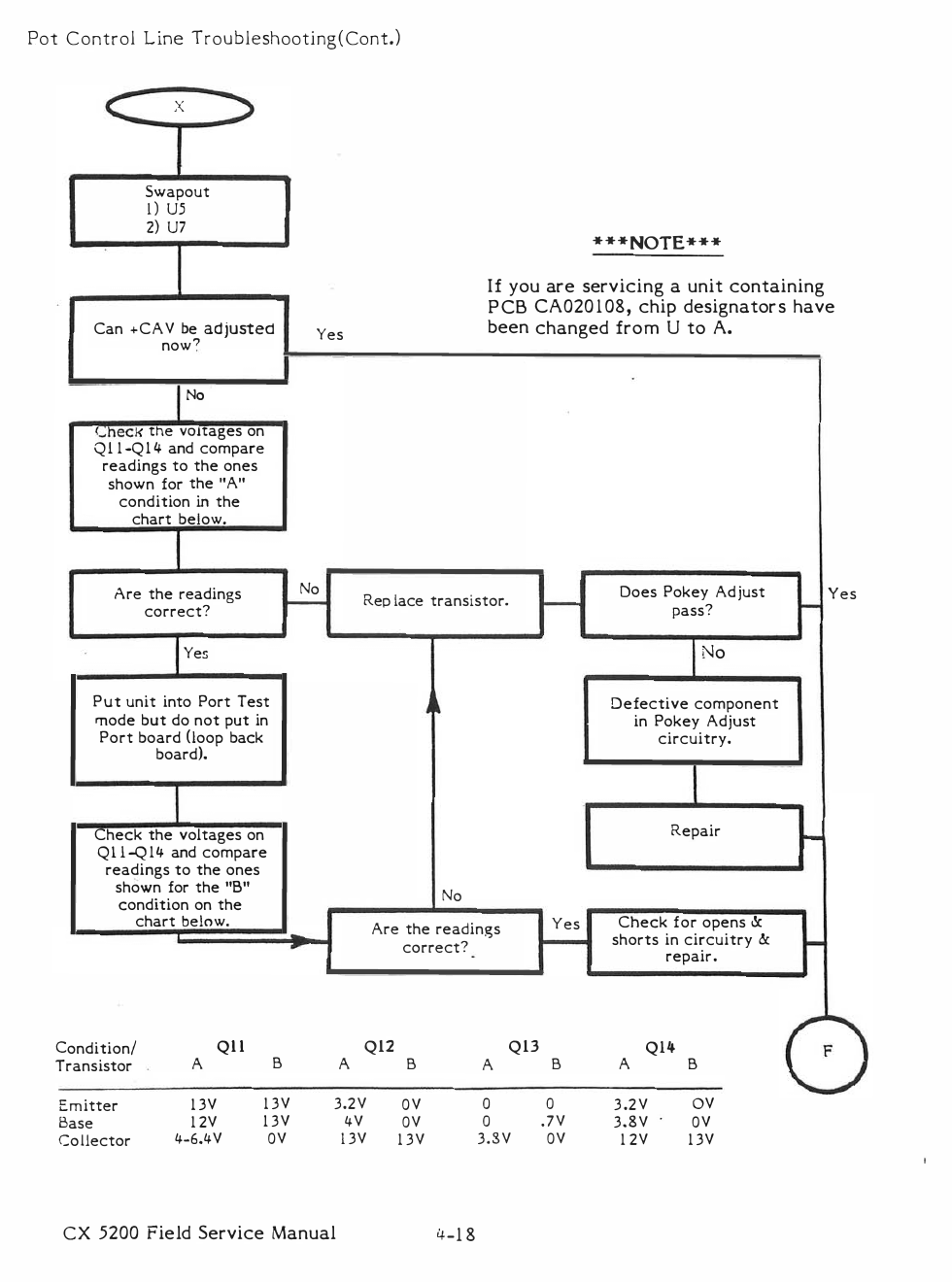

Atari's four-port pot control line troubleshooting flowchart, continued: swapping U5 and U7, and the voltages on Q11 to Q14 in the Pokey Adjust (A) and Port Test without port board (B) conditions.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered with pdftoppm from the Atari CX5200 Field Service Manual (PDF), Atari, Inc., FD100127 Rev. 4, July 1983, PDF page 75 (manual p. 4-18).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
