File:Atari 800XL clock oscillator and reset circuit (FD100740 schematic).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

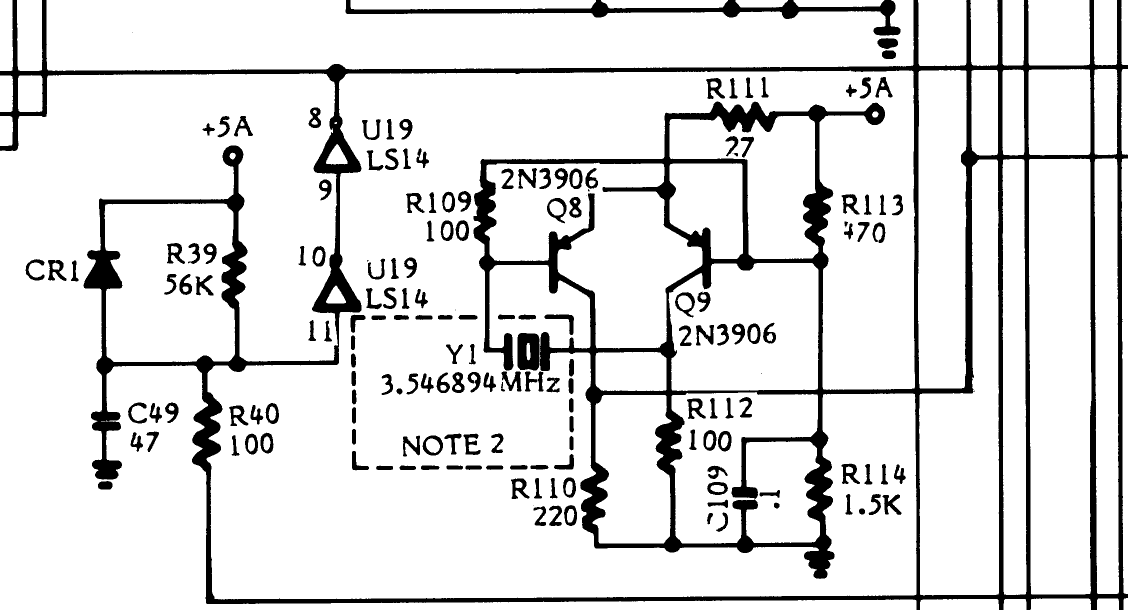

Detail of the 800XL schematic in Atari's 800XL Computer Field Service Manual (FD100740 Rev. 01, February 1984), section 5. Right: the crystal oscillator, 2N3906 transistors Q8 and Q9 with crystal Y1 (drawn as the 3.546894 MHz U.K. part; note 2 of the schematic changes it to 3.579545 MHz for domestic units), R109-R114 and C109. Left: the power-on reset circuit, C49 (47 µF) charged from +5A through R39 (56 kΩ) with CR1 across R39, R40 (100 Ω) to the reset switch line, and two sections of the 74LS14 U19 (pins 11-10 and 9-8).
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:Atari 800XL Computer Field Service Manual FD100740 Rev 01.pdf, PDF page 36, at 300 dpi and cropped.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari, Inc. Hosted for preservation and repair reference, with the source cited.
