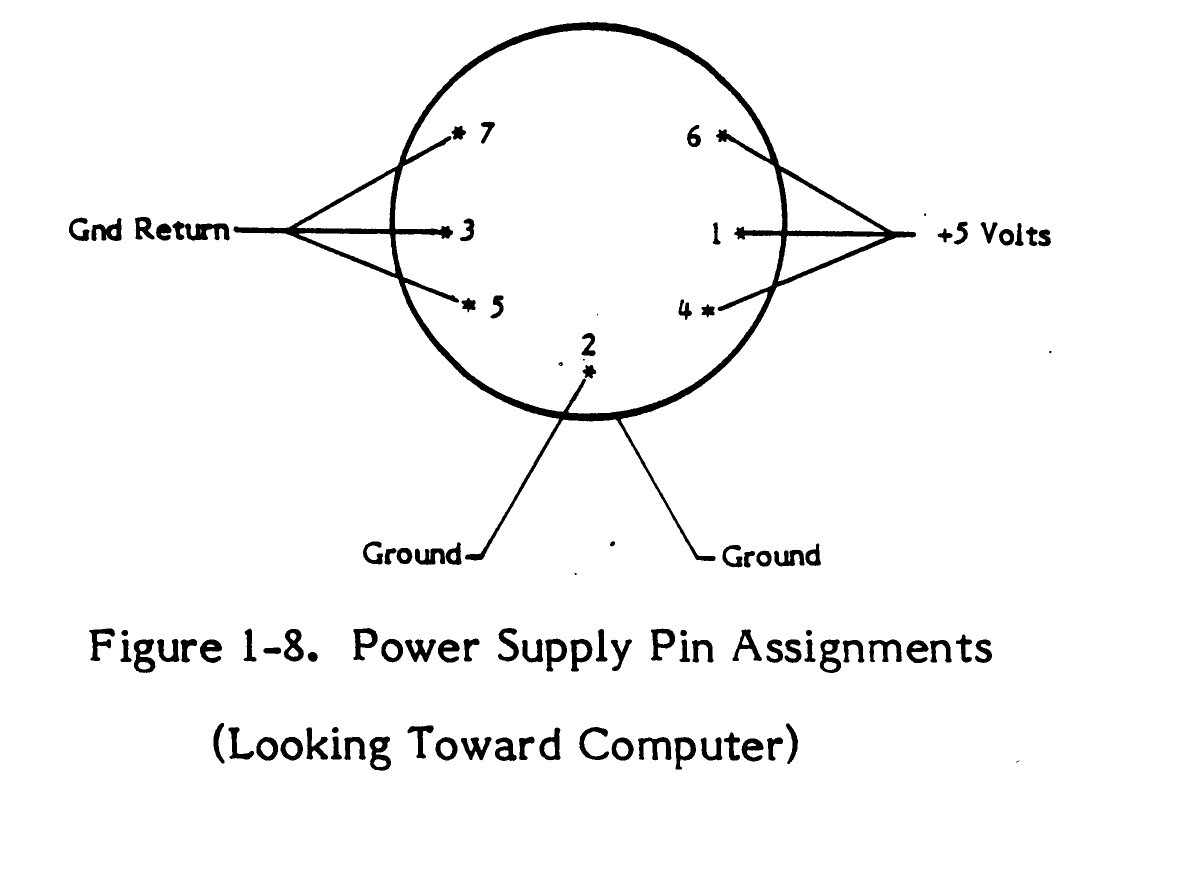

Figure 1-8, "Power Supply Pin Assignments (Looking Toward Computer)", from Atari's 800XL Computer Field Service Manual (FD100740 Rev. 01, February 1984), page 1-11. Pins 1, 4 and 6 carry +5 V; pins 3, 5 and 7 are the ground return; pin 2 is ground.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:Atari 800XL Computer Field Service Manual FD100740 Rev 01.pdf, PDF page 19, at 300 dpi and cropped.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari, Inc. Hosted for preservation and repair reference, with the source cited.
