File:Atari 800XL power supply opened, potted interior (Terry Stewart).jpg
Size of this preview: 640 × 480 pixels.
Original file (640 × 480 pixels, file size: 164 KB, MIME type: image/jpeg)
Summary
[edit | edit source].jpg&veaction=edit§ion=1){kind=link}
.jpg&action=edit§ion=1){kind=link}

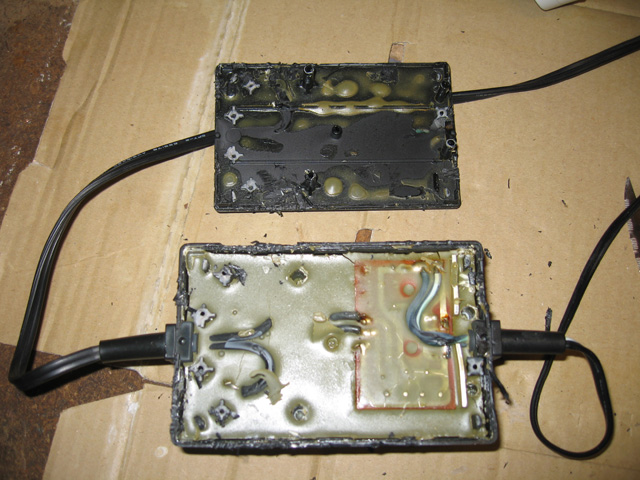

A failed 220 V Atari 800XL power supply cut open by Terry Stewart, showing the transformer and circuit board embedded in potting compound. The supply had been delivering 7.6 V instead of 5 V.
Source
[edit | edit source].jpg&veaction=edit§ion=2){kind=link}
.jpg&action=edit§ion=2){kind=link}
Terry Stewart, "Faulty RAM traced to power supply in an Atari 800XL", classic-computers.org.nz, 29 August 2010, figure 4 (retrieved 2026-10-25).
Author
[edit | edit source].jpg&veaction=edit§ion=3){kind=link}
.jpg&action=edit§ion=3){kind=link}
Terry Stewart.
Licence
[edit | edit source].jpg&veaction=edit§ion=4){kind=link}
.jpg&action=edit§ion=4){kind=link}
Copyright Terry Stewart. No free licence is stated at the source. Used with credit as a repair reference.
