File:Atari 830 Acoustic Modem (operator's manual figure 4).png
Size of this preview: 600 × 600 pixels. Other resolution: 750 × 750 pixels.
Original file (750 × 750 pixels, file size: 141 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

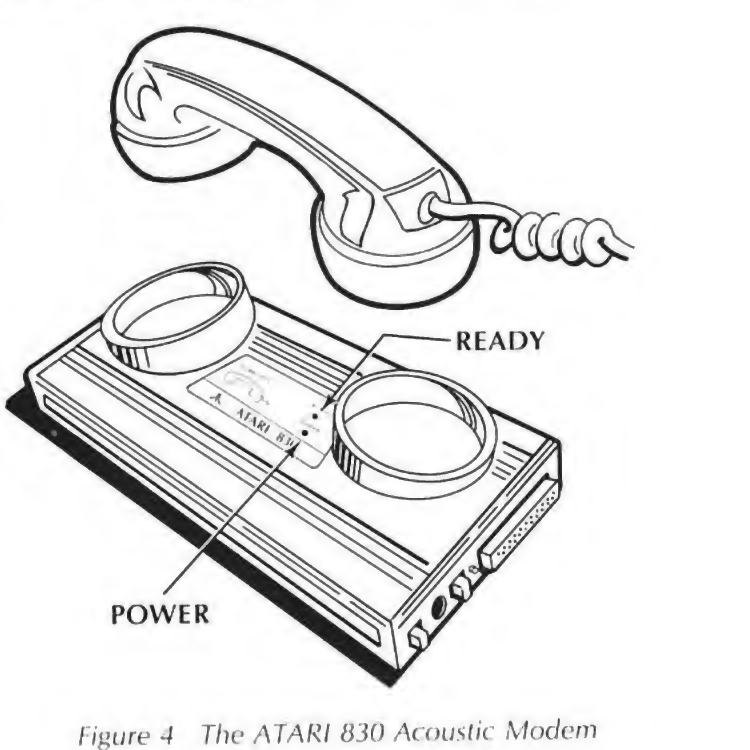

Figure 4 of the Atari 850 Interface Module Operator's Manual (C017651, 1982): drawing of the Atari 830 Acoustic Modem with a telephone handset above its two acoustic cups, marking the READY and POWER lights.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 200 dpi from File:Atari 850 Interface Module Operator's Manual C017651.pdf, page 16 of the PDF (printed page 10), cropped and converted to greyscale, 2026-10-04.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright 1982 Atari, Inc. Reproduced from the operator's manual to identify the product.
