File:Atari CX-2600A schematic, power input and regulator.png
Size of this preview: 799 × 282 pixels. Other resolution: 1,020 × 360 pixels.
Original file (1,020 × 360 pixels, file size: 49 KB, MIME type: image/png)
Summary
[edit | edit source]

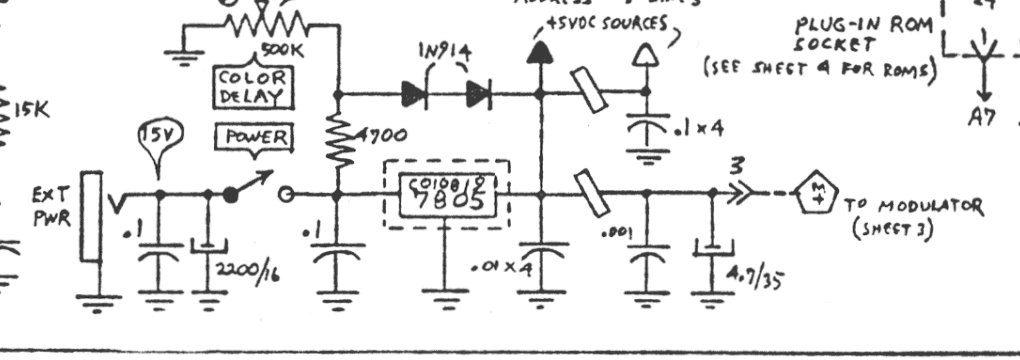

Crop of Atari's CX-2600A main board schematic (sheet 2 of 4, dated 30 May 1982) showing the external power jack, the 0.1 uF and 2200 uF 16 V capacitors on the jack side of the power switch, the 7805 regulator, the +5 V decoupling and modulator feed, and the colour delay network (500K pot, 4700 ohm resistor and two 1N914 diodes).
Source
[edit | edit source]
Cropped from File:Schematic Atari2600A 2000.png, hosted on this wiki.
Author
[edit | edit source]
Atari, Inc.
Licence
[edit | edit source]
Copyright Atari, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
