File:Atari CX52 controller cable connector pins (FSM figure 6-3).png
Size of this preview: 420 × 220 pixels.
Original file (420 × 220 pixels, file size: 34 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

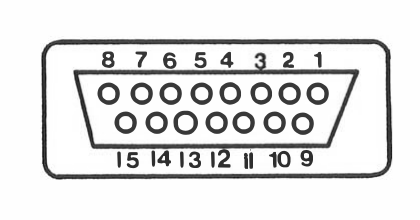

Figure 6-3 of Atari's CX5200 field service manual: pin numbering of the 15-pin controller cable connector.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered with pdftoppm from the Atari CX5200 Field Service Manual (PDF), Atari, Inc., FD100127 Rev. 4, July 1983, PDF page 118 (manual p. 6-6), and cropped to the figure.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
