File:Atari CX52 controller select switch bezel removal (FSM figure 6-6).png
Size of this preview: 800 × 518 pixels. Other resolution: 850 × 550 pixels.
Original file (850 × 550 pixels, file size: 115 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

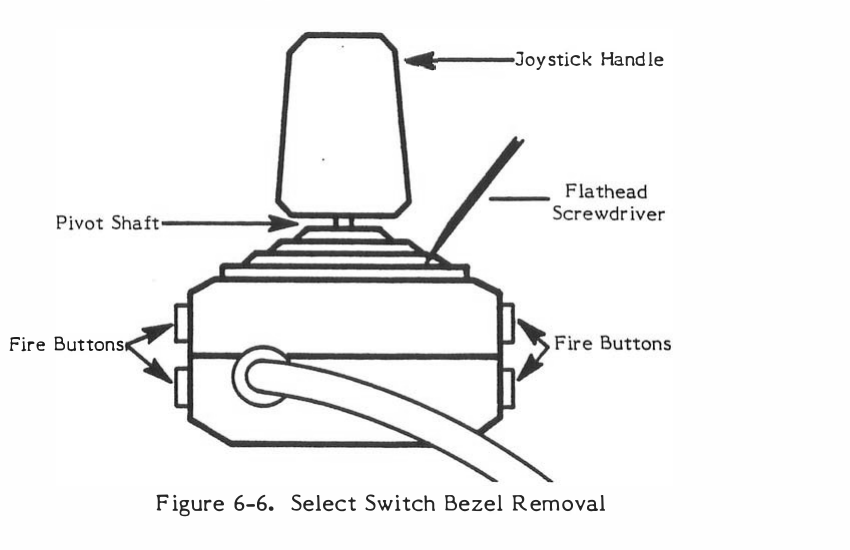

Figure 6-6 of Atari's CX5200 field service manual: prising out the select switch bezel with a flathead screwdriver; the joystick handle, pivot shaft and fire buttons are labelled.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered with pdftoppm from the Atari CX5200 Field Service Manual (PDF), Atari, Inc., FD100127 Rev. 4, July 1983, PDF page 122 (manual p. 6-10), and cropped to the figure.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Atari, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Atari, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
