File:Atari ST Mitsumi SR98 bridge rectifier replacement (Jonathan Whiteside).jpg
Size of this preview: 543 × 492 pixels.
Original file (543 × 492 pixels, file size: 57 KB, MIME type: image/jpeg)
Summary
[edit | edit source].jpg&veaction=edit§ion=1){kind=link}
.jpg&action=edit§ion=1){kind=link}

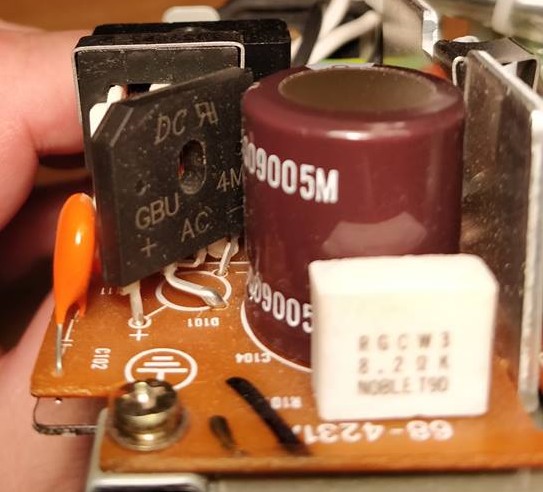

Close-up of a Mitsumi SR98 Atari ST power supply board (marked 68-4231A) with a replacement GBU-package bridge rectifier fitted at D101, beside the reservoir capacitor C104 and the 8.2 Ω wirewound resistor R101.
