File:Atari XL power plug wiring for a replacement supply (retrohax).png
Size of this preview: 800 × 562 pixels. Other resolution: 1,158 × 813 pixels.
Original file (1,158 × 813 pixels, file size: 438 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

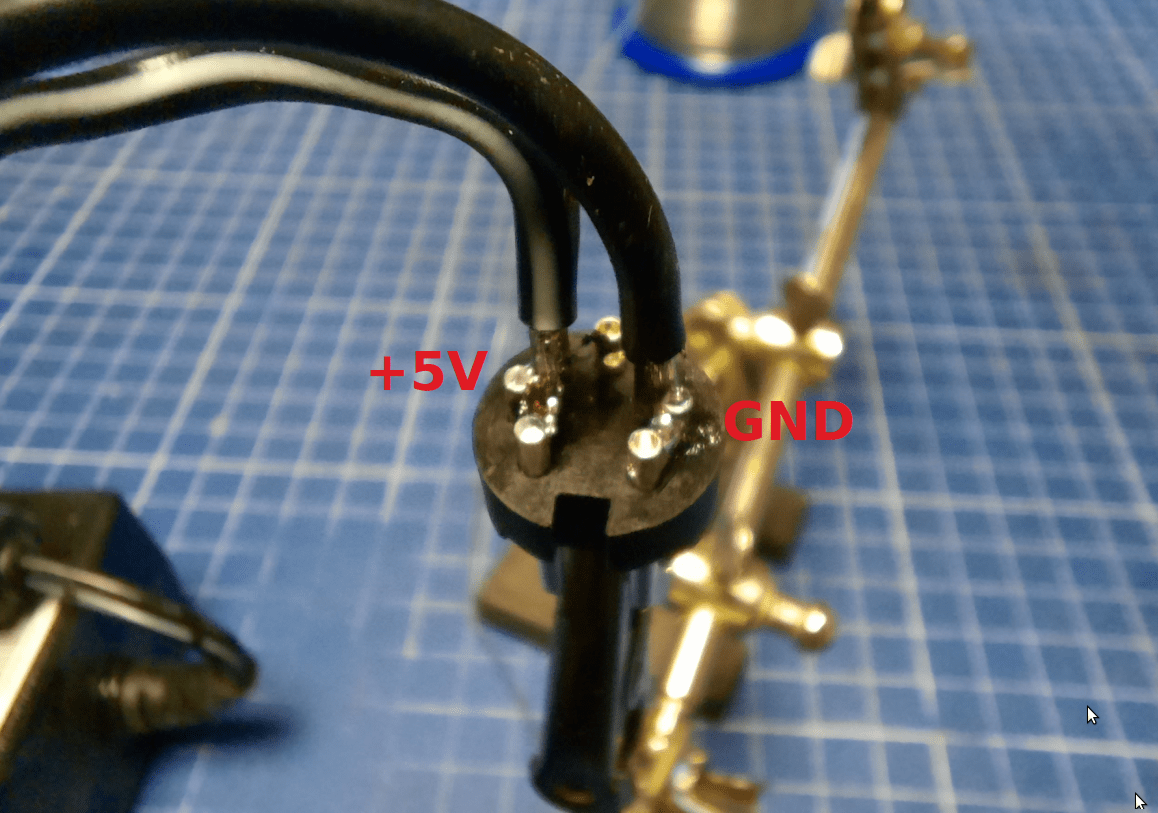

The solder side of a Deltron 7-pin DIN plug wired to a Mean Well 5 V supply for an Atari 800XL. Three pins on one side are bridged to the +5 V lead (the lead with the white stripe), the three on the other side are bridged to the ground lead, and the middle pin is left unconnected. Labels in the photo are the author's.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
"#SHORTS – DIY PSU for Atari XL/XE series", retrohax.net, 16 February 2023 (retrieved 2026-10-25).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
drygol (retrohax.net).
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright drygol / retrohax.net. No free licence is stated at the source. Used with credit as a repair reference.
