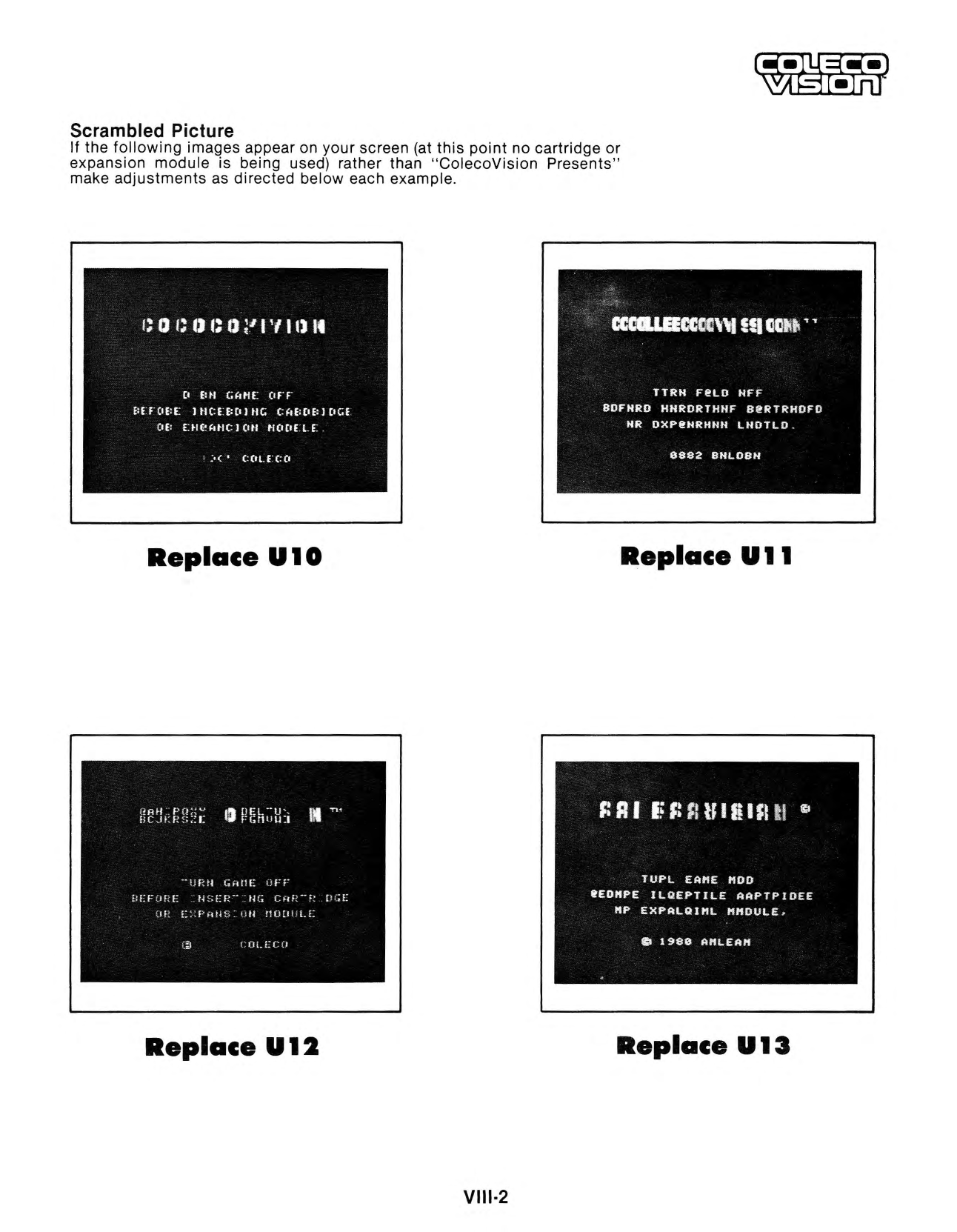

Page VIII-2 of Coleco's ColecoVision Technical Manual, "Scrambled Picture": four photographs of the title screen as it appears with no cartridge inserted when one video RAM chip has failed, each captioned with the chip to replace (U10, U11, U12, U13). Rendered at 150 dpi.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from File:ColecoVision Repair Manual.pdf, page VIII-2 (PDF page 79).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Coleco Industries, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Coleco Industries, Inc. Hosted for preservation and repair reference, with the source cited.
