File:Color Classic Analog Recap Guide.jpg
Size of this preview: 800 × 598 pixels. Other resolution: 2,048 × 1,530 pixels.
Original file (2,048 × 1,530 pixels, file size: 786 KB, MIME type: image/jpeg)
Summary
[edit | edit source]

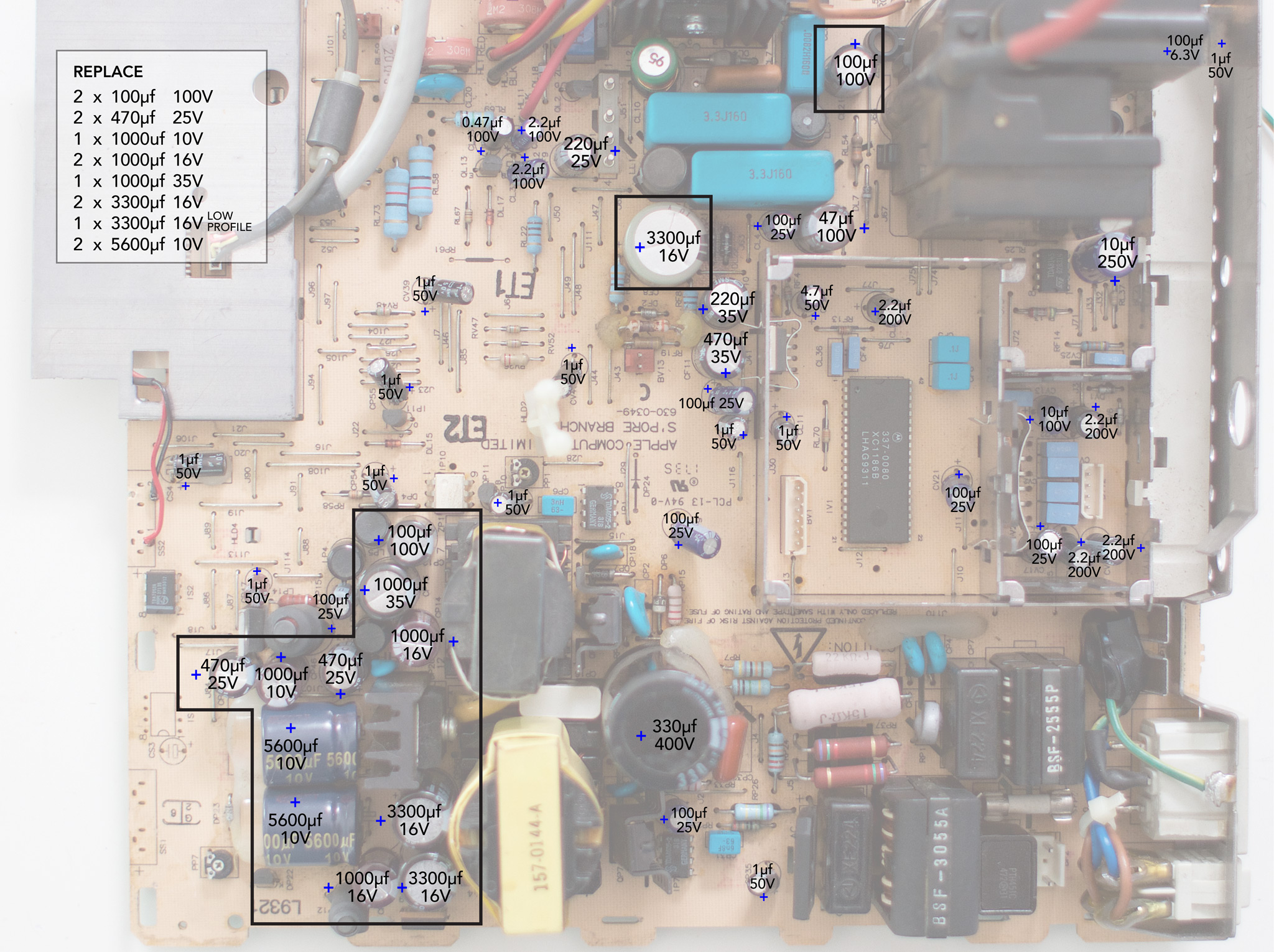

Annotated photograph of a Macintosh Color Classic analog board with the electrolytic capacitors to replace marked. Its list reads: 2 × 100 µF 100 V, 2 × 470 µF 25 V, 1 × 1000 µF 10 V, 2 × 1000 µF 16 V, 1 × 1000 µF 35 V, 2 × 3300 µF 16 V, 1 × 3300 µF 16 V low profile and 2 × 5600 µF 10 V.
