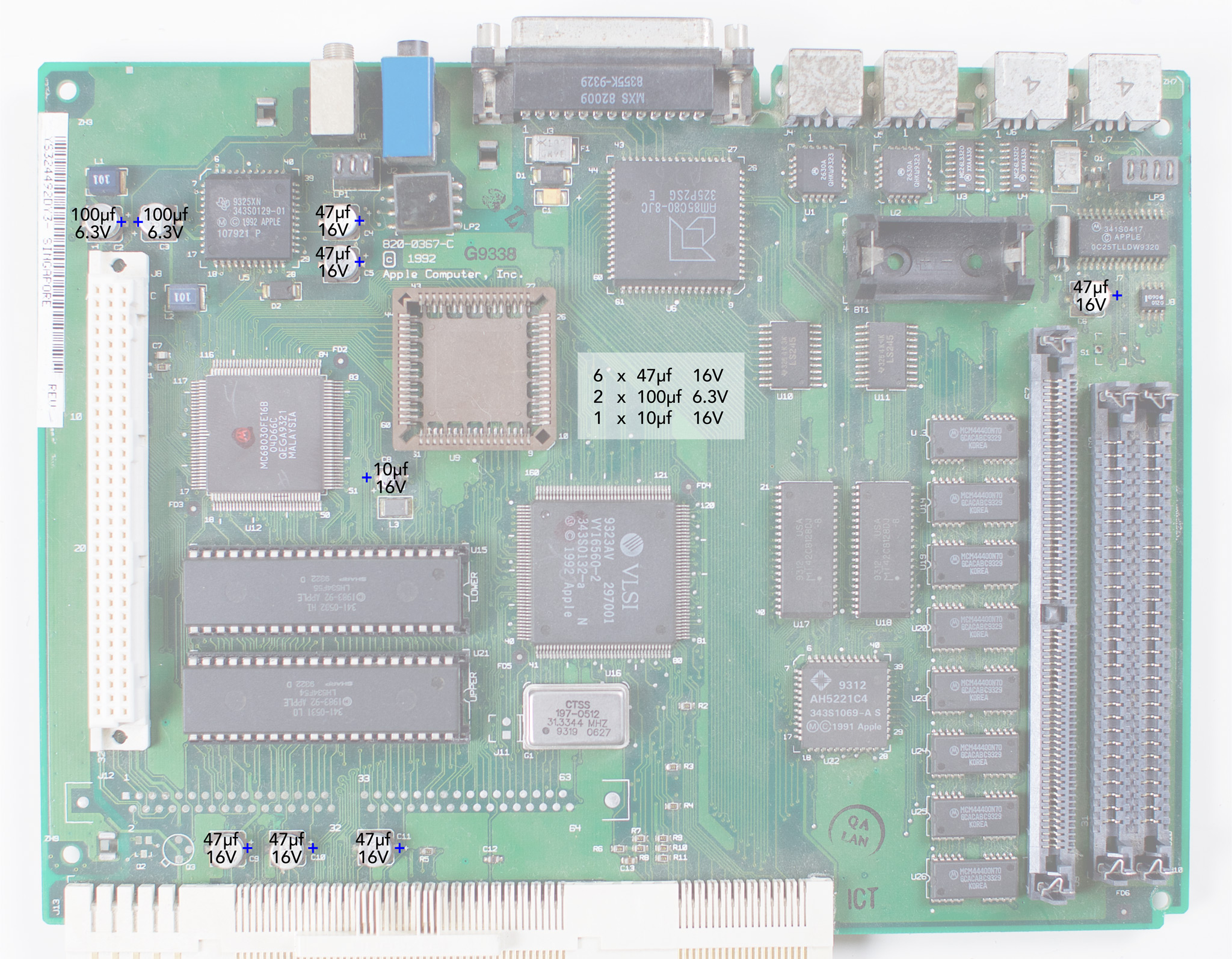

Annotated photograph of a Macintosh Color Classic logic board with the electrolytic capacitors to replace marked: 6 × 47 µF 16 V, 2 × 100 µF 6.3 V and 1 × 10 µF 16 V.
