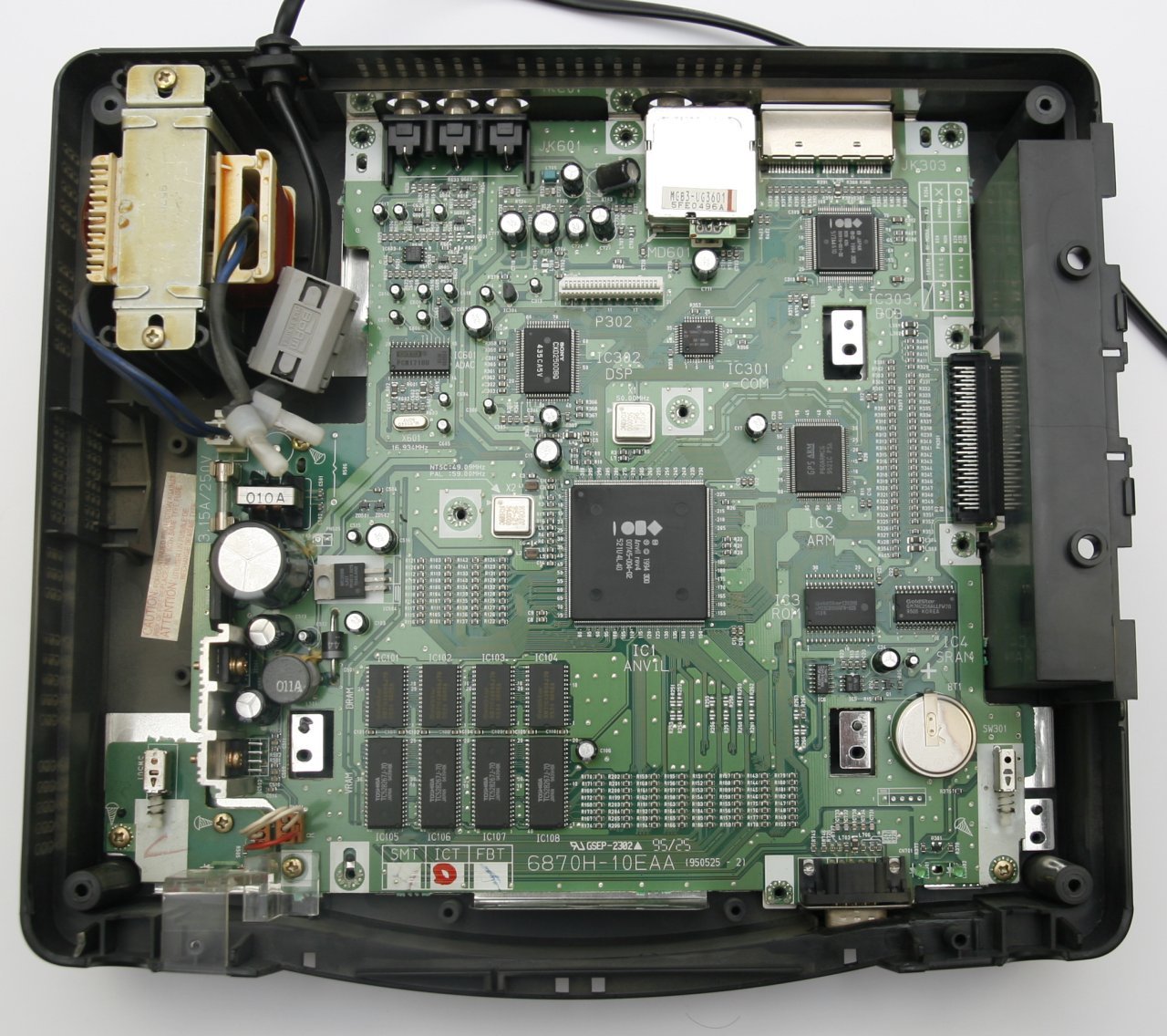

The inside of a GoldStar 3DO GDO-202P (PAL) with the disc drive removed. The main board is marked 6870H-10EAA (950525-2) with a 95/25 date mark. It carries the Anvil chip (IC1), the ARM60 (IC2), DRAM IC101 to IC104, VRAM IC105 to IC108, the Sony CXD2500BQ CD signal processor (IC302), the "BOB" chip (IC303), the Burr-Brown PCM1710U audio DAC (IC601), the coin cell BT1 beside the SRAM (IC4), and the power supply section at the front left (fuse, reservoir capacitor, regulators on an aluminium heatsink). The mains transformer is screwed to the case at the rear left.
