File:H7878 power supply output riser board (Rob Jarratt).jpg
Size of this preview: 800 × 450 pixels. Other resolution: 1,600 × 900 pixels.
Original file (1,600 × 900 pixels, file size: 401 KB, MIME type: image/jpeg)
Summary
[edit | edit source].jpg&veaction=edit§ion=1){kind=link}
.jpg&action=edit§ion=1){kind=link}

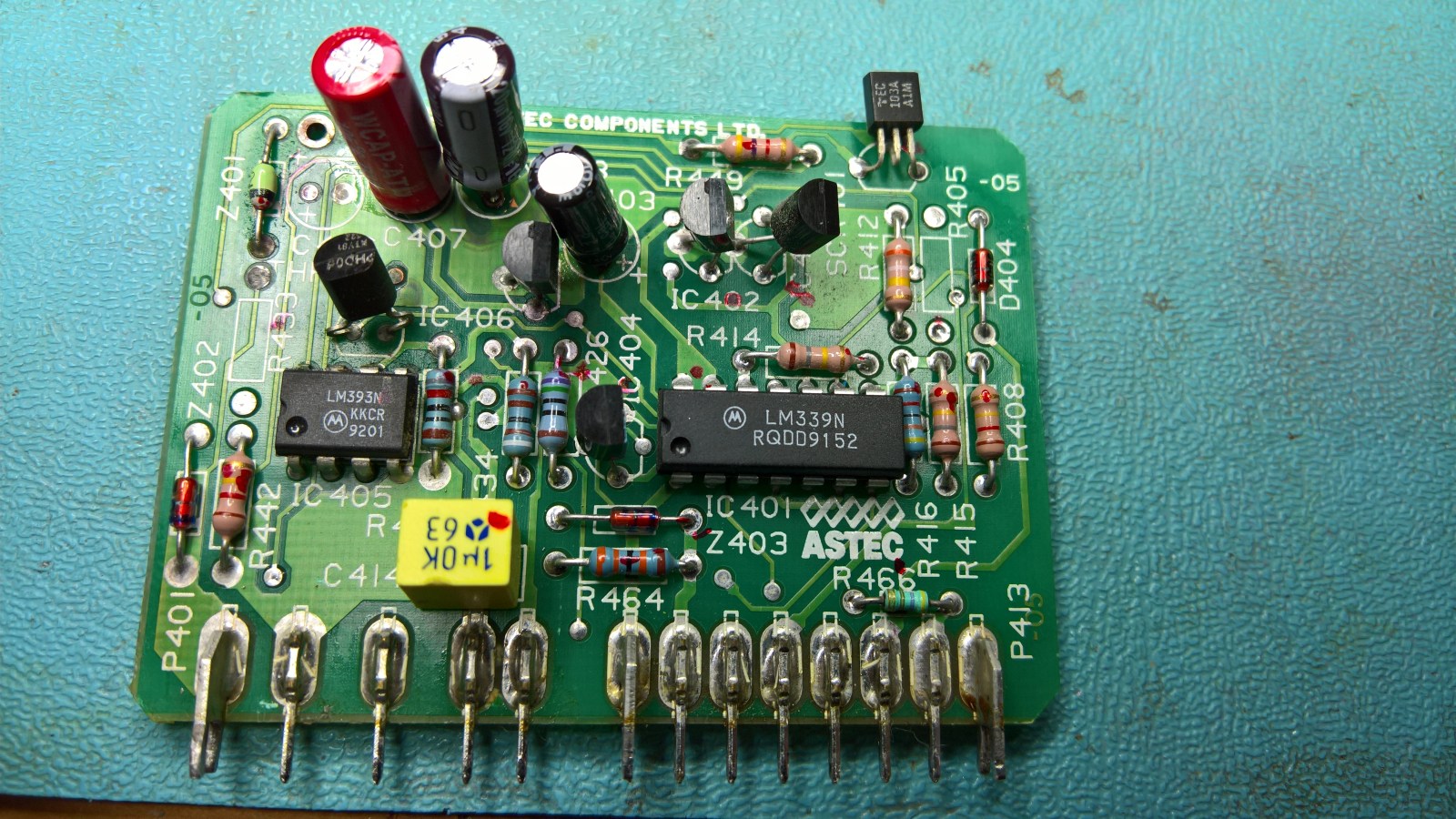

The Astec output regulation riser board from an H7878 DECstation 5000 power supply after Rob Jarratt replaced C407 and C408 and cleaned it. LM339N and LM393 comparators are visible.
Source
[edit | edit source].jpg&veaction=edit§ion=2){kind=link}
.jpg&action=edit§ion=2){kind=link}
https://robs-old-computers.com/2017/10/01/decstation-5000-model-240-psu-fixed/ (retrieved 2026-10-01)
Author
[edit | edit source].jpg&veaction=edit§ion=3){kind=link}
.jpg&action=edit§ion=3){kind=link}
Rob Jarratt, Rob's Old Computers.
Licence
[edit | edit source].jpg&veaction=edit§ion=4){kind=link}
.jpg&action=edit§ion=4){kind=link}
No licence is stated on the source page. Credited to the author and used for repair reference.
