File:Intellivision Model 2609 console exploded view (Mattel).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

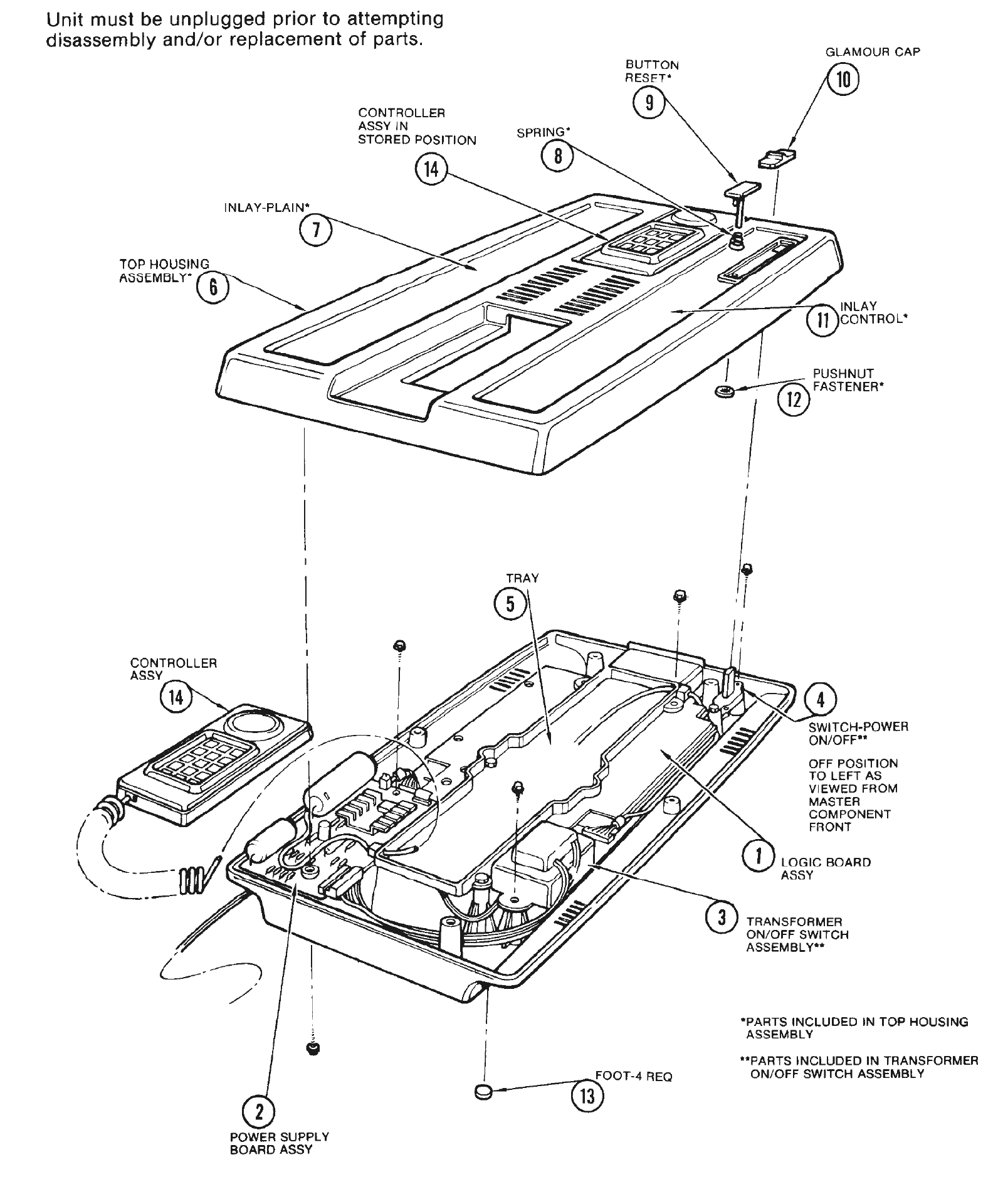

Mattel's exploded view of the Intellivision Master Component (model 2609) console assembly: top housing assembly, inlays, reset button and spring, ON/OFF glamour cap, tray, logic board assembly, power supply board assembly, transformer and ON/OFF switch assembly, controllers and feet, with Mattel's index numbers. Rendered from page 20 of the Subassembly Service Manual, Model 2609.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Mattel Intellivision Subassembly Service Manual Model 2609.pdf, page 20, rendered at 200 dpi and cropped (2026-10-19).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Mattel Electronics
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Mattel, Inc. Hosted for preservation and repair reference, with the source cited.
