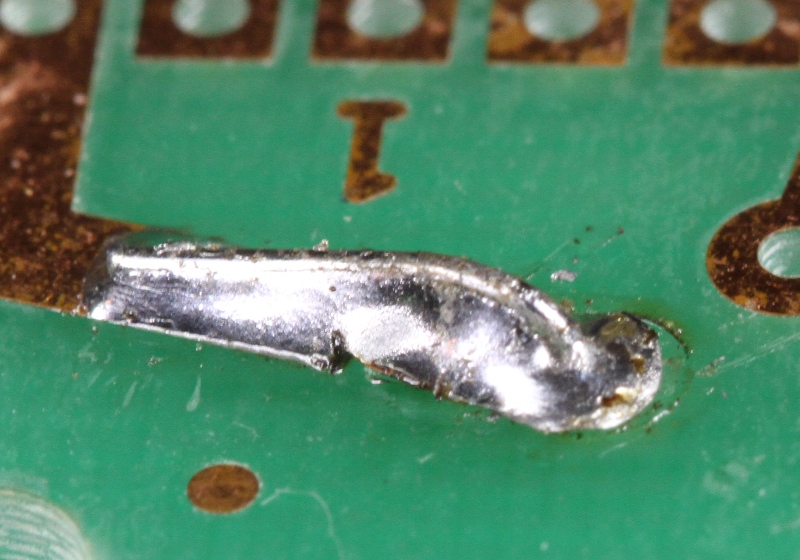

The same lifted pad after repair: the component lead has been bent over flat along the board onto the copper trace that led to the pad, with the solder mask removed, and soldered to it.
