File:Mac IIcx Recap Guide.jpg
Size of this preview: 681 × 599 pixels. Other resolution: 2,048 × 1,802 pixels.
Original file (2,048 × 1,802 pixels, file size: 1.45 MB, MIME type: image/jpeg)
Summary
[edit | edit source]

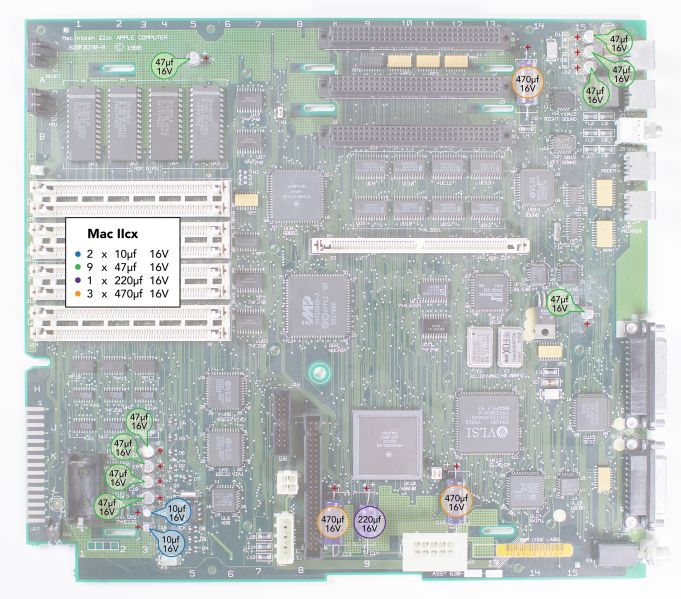

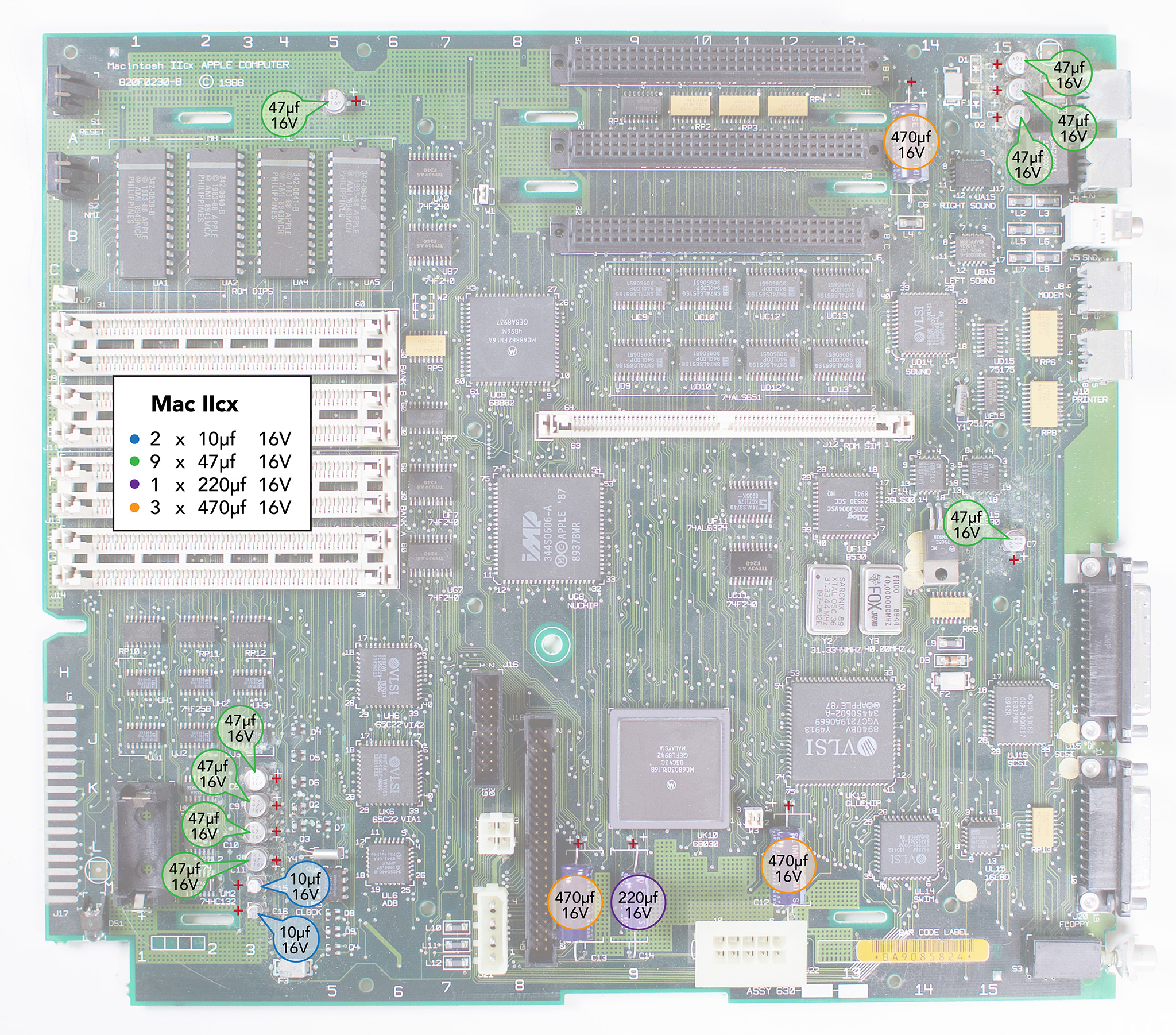

Recap-a-Mac's annotated photograph of the Macintosh IIcx logic board, with each electrolytic capacitor marked with its value and voltage. The legend lists 2 × 10 µF, 9 × 47 µF, 1 × 220 µF and 3 × 470 µF, all 16 V.
Source
[edit | edit source]
Recap-a-Mac, https://recapamac.com.au/wp-content/uploads/2020/10/mac_iicx_recap-1.jpg, linked from https://recapamac.com.au/macintosh-iicx/ (retrieved 2026-10-01). Identical to this file (same SHA-1).
