File:Mac LC 475 Recap Guide.jpg
Summary
[edit | edit source]

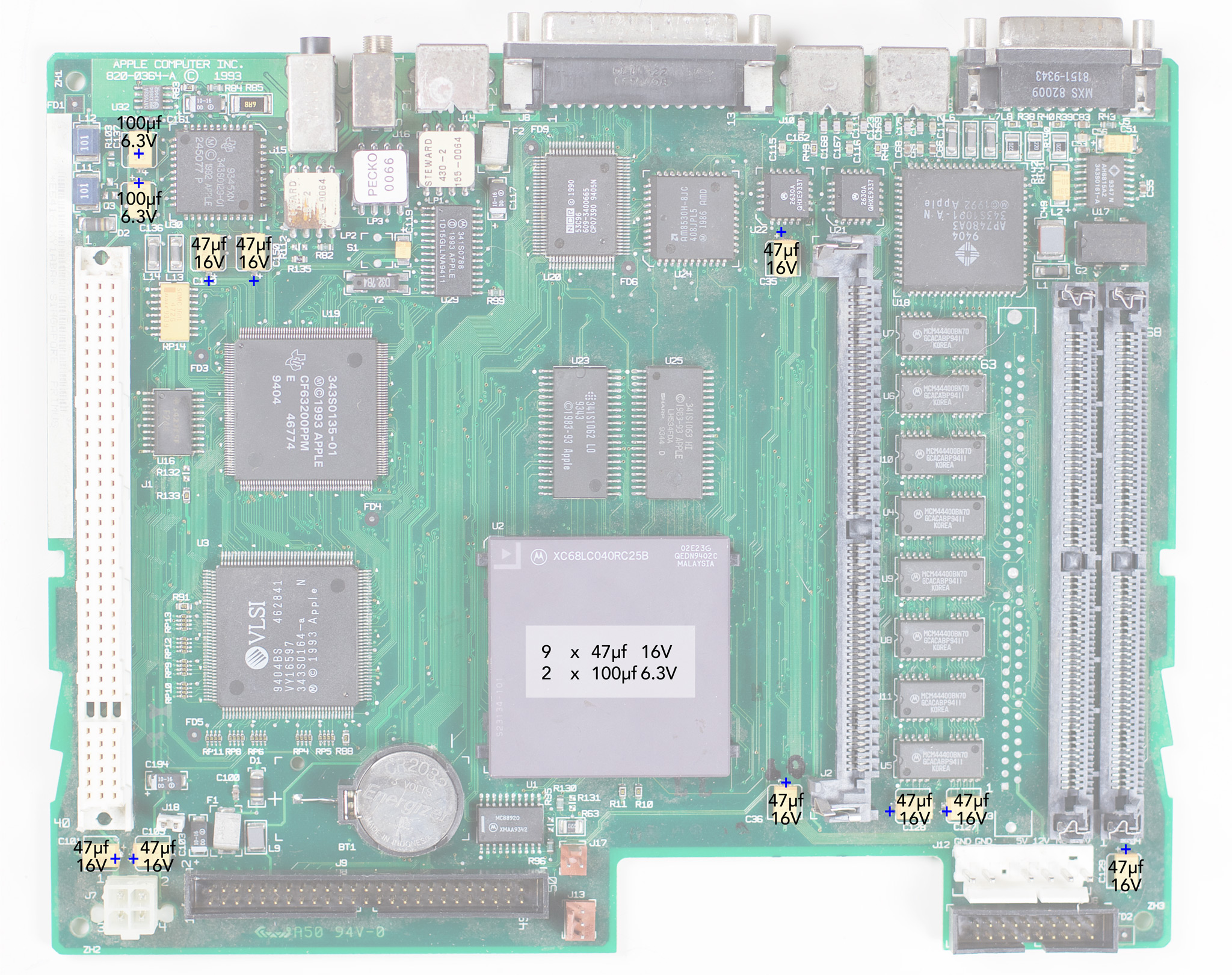

Recap-a-Mac's annotated photograph of the Macintosh LC 475 logic board, with each electrolytic capacitor marked with its value and voltage. The legend lists 9 × 47 µF 16 V and 2 × 100 µF 6.3 V. It is also used on the Quadra 605 capacitor page.
Source
[edit | edit source]
Recap-a-Mac, https://recapamac.com.au/wp-content/uploads/2019/08/mac_lc475_recap.jpg, linked from https://recapamac.com.au/macintosh-lc475/ (retrieved 2026-10-01). Identical to this file (same SHA-1).
Author
[edit | edit source]
Recap-a-Mac (recapamac.com.au), Branchus Creations.
Licence
[edit | edit source]
Copyright Recap-a-Mac. No licence is stated on the source site; reproduced here as a repair reference with the source cited.
