File:Mac LC Recap Guide.jpg
Size of this preview: 791 × 600 pixels. Other resolution: 2,048 × 1,553 pixels.
Original file (2,048 × 1,553 pixels, file size: 1.28 MB, MIME type: image/jpeg)
Summary
[edit | edit source]

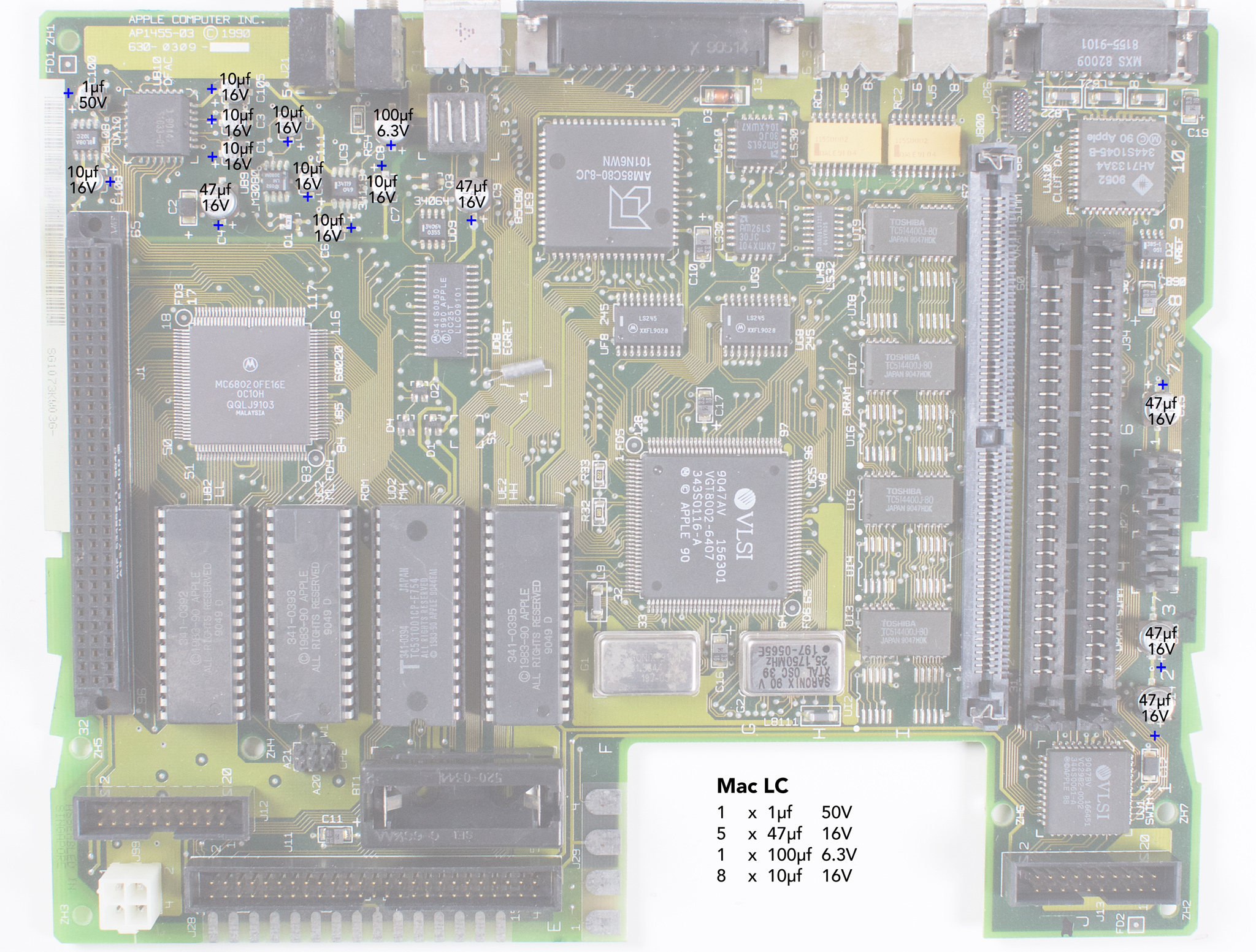

Recap-a-Mac's annotated photograph of the Macintosh LC logic board, with each electrolytic capacitor marked with its value and voltage. The legend lists 1 × 1 µF 50 V, 5 × 47 µF 16 V, 1 × 100 µF 6.3 V and 8 × 10 µF 16 V.
Source
[edit | edit source]
Recap-a-Mac, https://recapamac.com.au/wp-content/uploads/2020/06/mac_lc_recap.jpg, linked from https://recapamac.com.au/macintosh-lc/ (retrieved 2026-10-01). Identical to this file (same SHA-1).
Author
[edit | edit source]
Recap-a-Mac (recapamac.com.au), Branchus Creations.
Licence
[edit | edit source]
Copyright Recap-a-Mac. No licence is stated on the source site; reproduced here as a repair reference with the source cited.
