File:Macintosh Portable exploded view (Service Source).png
Size of this preview: 419 × 599 pixels. Other resolution: 1,292 × 1,848 pixels.
Original file (1,292 × 1,848 pixels, file size: 345 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

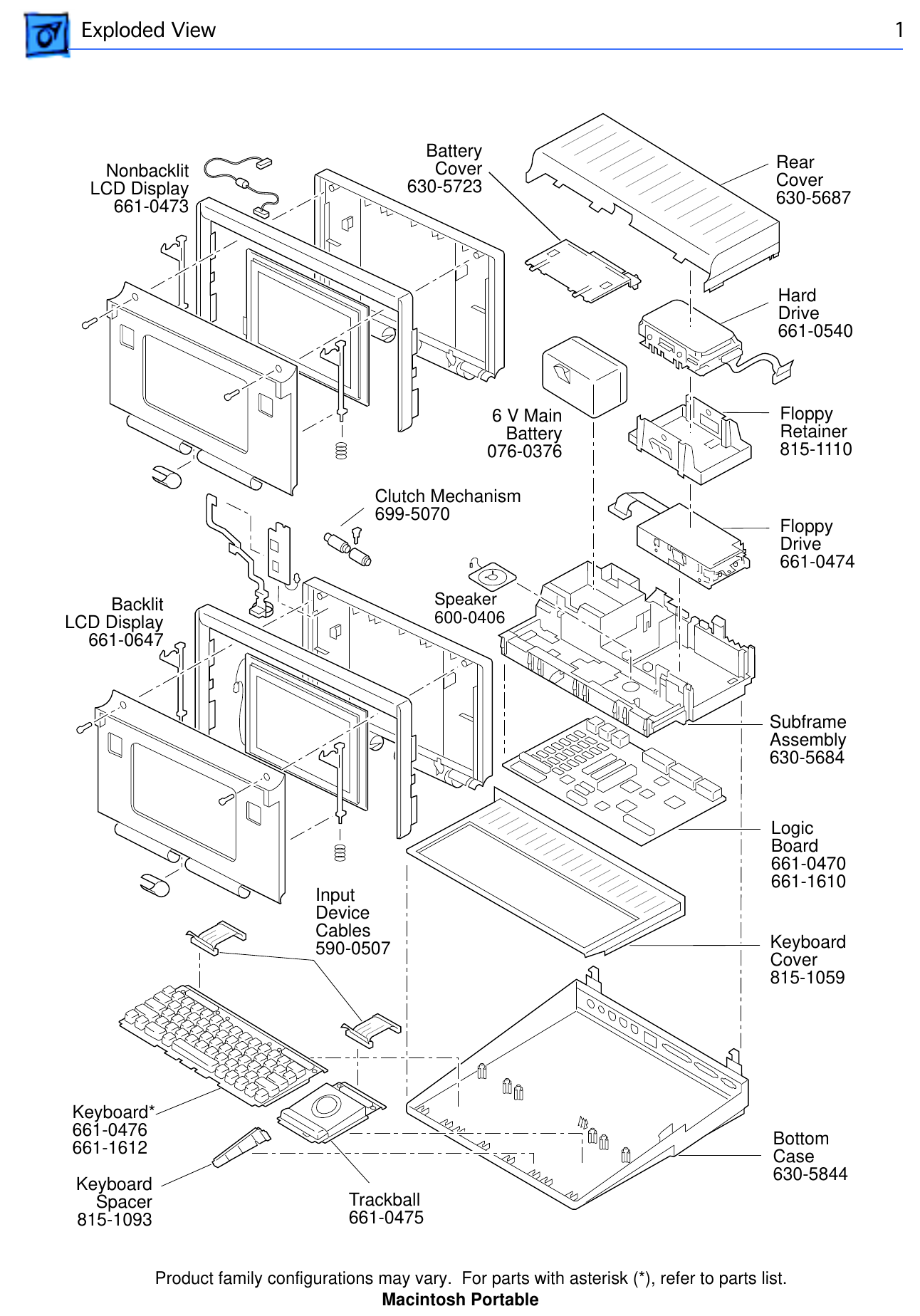

Apple's exploded view of the Macintosh Portable with module part numbers, including the non-backlit (661-0473) and backlit (661-0647) LCD displays, the 6 V main battery (076-0376), the battery cover (630-5723) and the logic boards (661-0470, 661-1610). From the Macintosh Portable Service Source, PDF p. 151, rendered at 200 dpi and cropped.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:Macintosh_portable.pdf, PDF p. 151 (see Macintosh Portable Service Source).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed. Hosted for repair reference, with the source cited.
