File:Panasonic FS-A1GT front view (Technical Guide).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

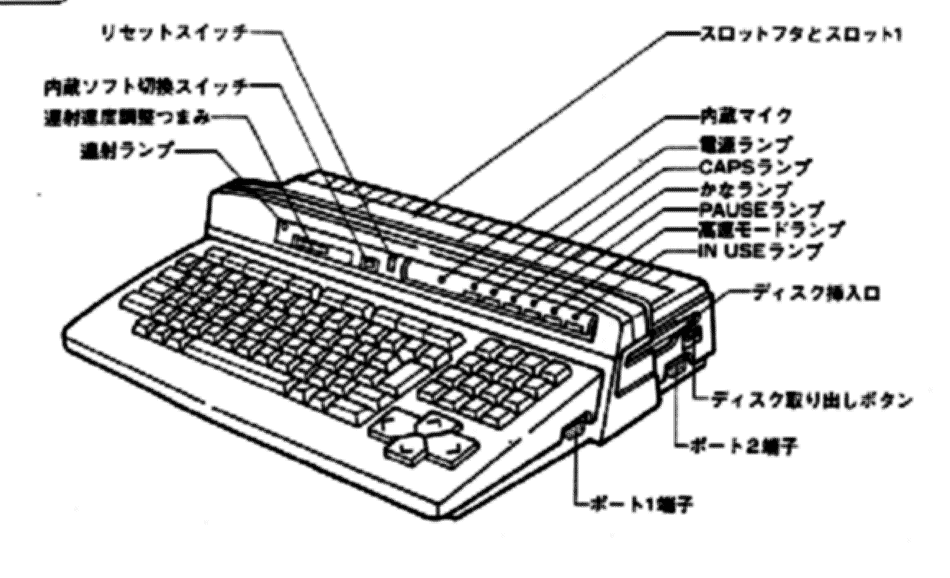

Line drawing of the front of the Panasonic FS-A1GT, from the "Part names" page of Panasonic's FS-A1GT Technical Guide No. 107 (February 1992), printed page 3. The labels are in Japanese: reset switch, built-in software switch, rapid-fire speed knob and lamp, slot cover and slot 1, internal microphone, power, CAPS, kana, PAUSE, high-speed mode and IN USE lamps, disk slot and eject button, and joystick ports 1 and 2.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Cropped from page 2 of panasonicturborgtsm.pdf (the 17-page short version of the Technical Guide scanned by Dennis Koller and Marcel Delorme, converted to PDF by Hans Otten), MSX Archive, https://www.msxarchive.nl/pub/msx/docs/service_manuals/ (retrieved 2026-10-21). The scan of that page is upside down and mirrored; the crop was flipped to read normally. The full Technical Guide is hosted as File:Panasonic FS-A1GT Technical Guide No. 107.pdf.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Matsushita Electric Industrial Co., Ltd. (Panasonic).
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Matsushita Electric Industrial Co., Ltd. Used to identify the product and for repair reference, with the source cited.
