Summary
[edit | edit source]

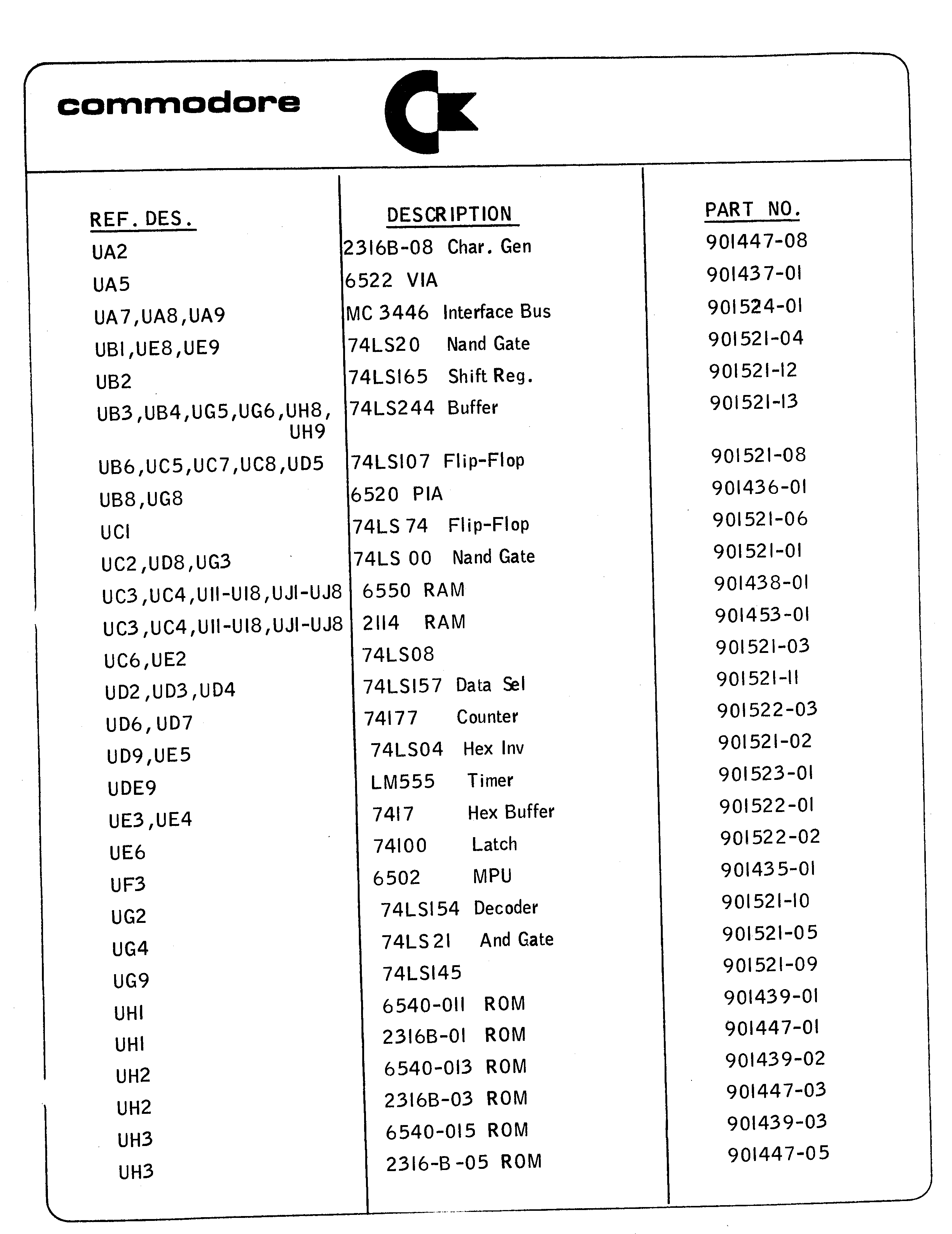

Sheet 2 of 3 of Commodore's Main Logic Assembly Parts Cross Reference for the Commodore PET 2001: the integrated circuits from UA2 to UH3. The RAM line appears twice against the same positions, once for the 6550 and once for the 2114, and each ROM position has a 6540 line and a 2316B line. A 2,544 × 3,296 pixel scan. Described on System Board Parts List (2 of 3).
Source
[edit | edit source]
zimmers.net Commodore archive, http://www.zimmers.net/anonftp/pub/cbm/schematics/computers/pet/2001/parts-2.gif (same file name and size, 119,857 bytes; checked 2026-10-01).
Author
[edit | edit source]
Commodore Business Machines, Inc.
Licence
[edit | edit source]
Copyright Commodore Business Machines. Not freely licensed. Hosted for preservation and repair reference.
