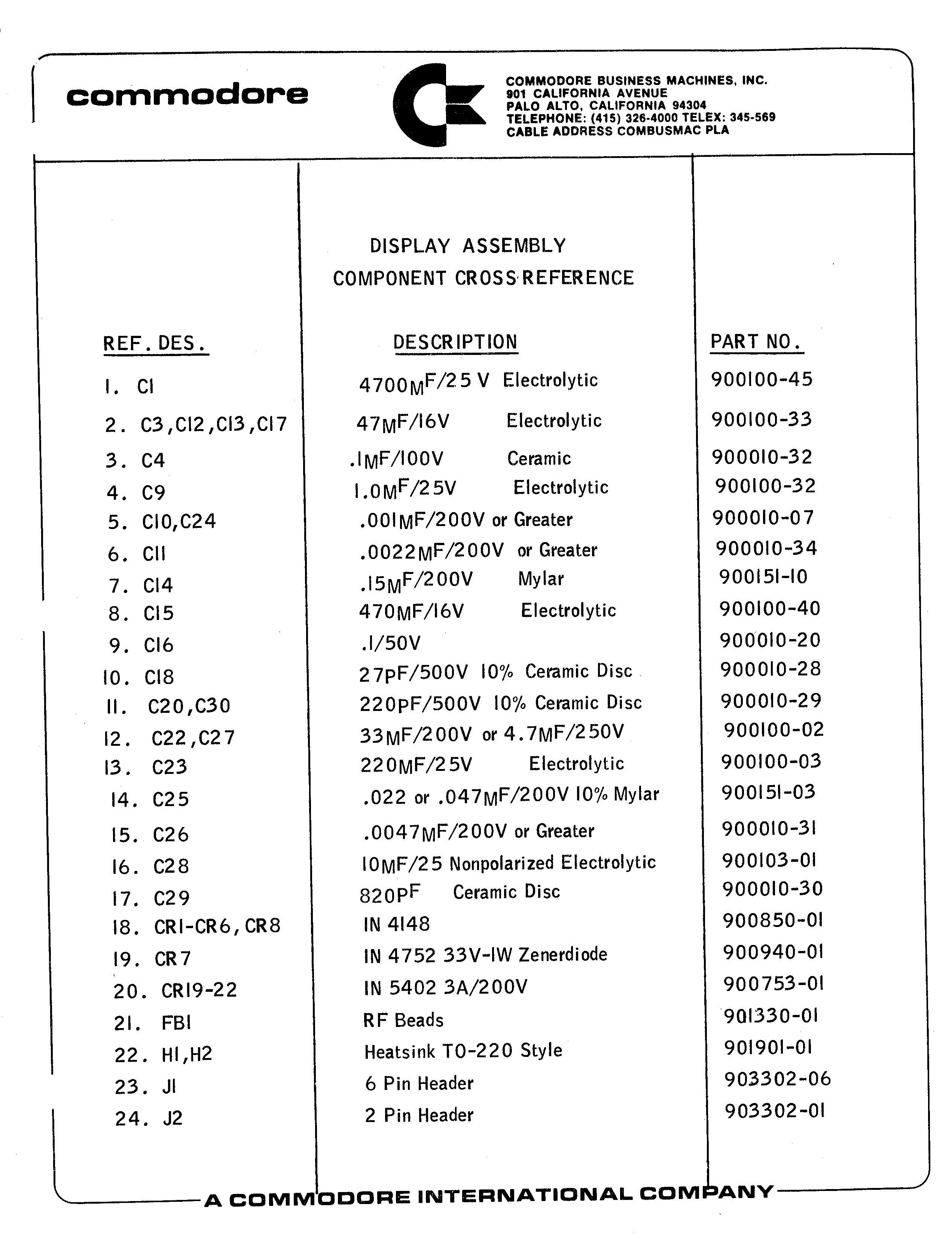

Sheet 1 of 3 of Commodore's Display Assembly Component Cross Reference for the Commodore PET 2001 display board, which drives the built-in monitor: items 1 to 24, the capacitors, diodes, ferrite bead, heatsinks and connectors. Item 12 gives C22 and C27 as "33MF/200V or 4.7MF/250V"; no Commodore drawing gives 33 µF, and the service schematic shows 3.3 µF 200 V for both. A 2,544 × 3,296 pixel scan. Described on Video Board Parts List (1 of 3).
