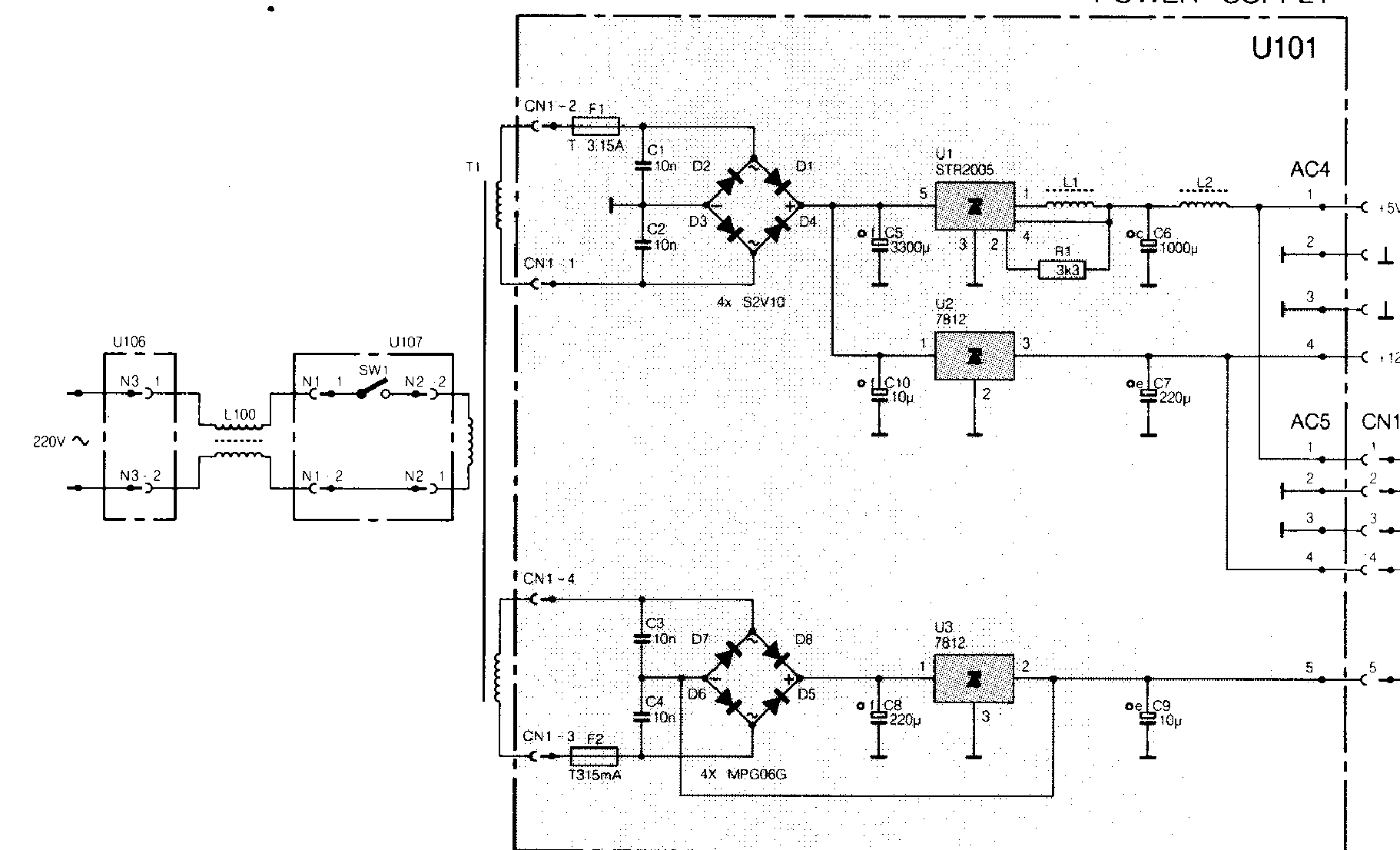

Circuit diagram of the Philips NMS 8245 power supply board U101: fuses F1 (T 3.15 A) and F2 (T 315 mA), bridge rectifiers D1 to D4 (S2V10) and D5 to D8 (MPG06G), the STR2005 switching regulator U1 for +5 V and the 7812 regulators U2 (+12 V) and U3 (−12 V), with the electrolytic capacitors C5 to C10. Rendered from the service manual sheet CS 11 836 (File:Philips NMS 8245 Service Manual.pdf, PDF page 13).

Source

[edit | edit source]

Philips service manual NMS8245/00/16, CS 11 823, via the MSX Archive scan (https://www.msxarchive.nl/pub/msx/docs/service_manuals/philipsnms8245sm.pdf), retrieved 2026-10-21.
