File:Philips Videopac G7000 power supply schematic (SM CS 75 068).png
Size of this preview: 800 × 428 pixels. Other resolution: 1,160 × 620 pixels.
Original file (1,160 × 620 pixels, file size: 247 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

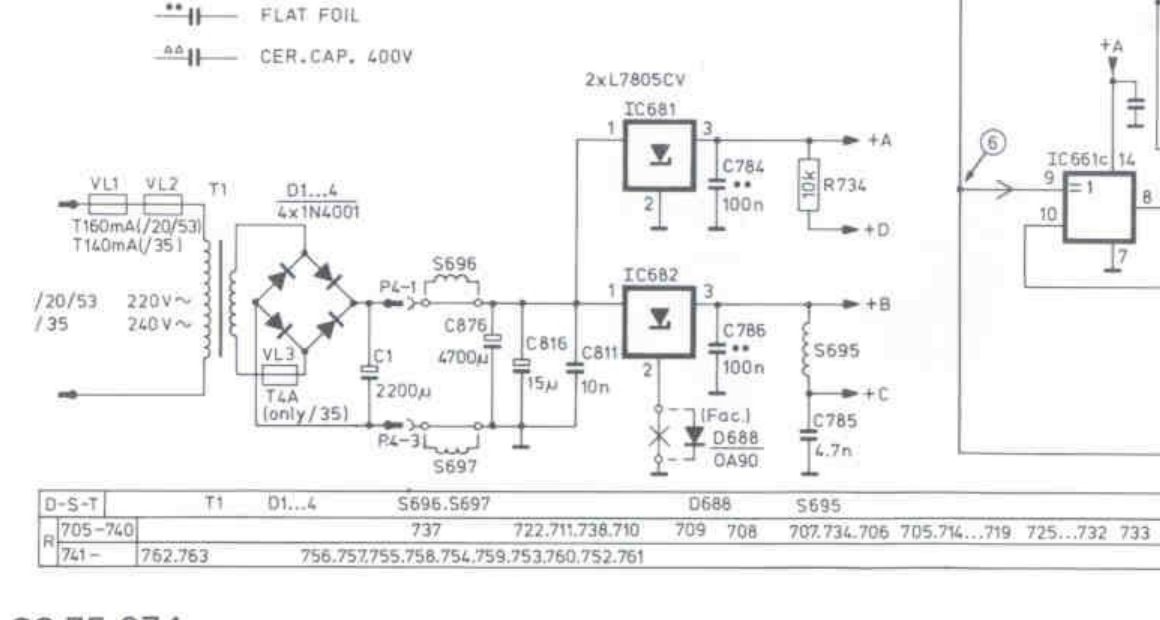

The power supply section of the G7000/20/35/53 circuit diagram (CS 75 074): primary fuses VL1/VL2 (T160 mA on /20 and /53, T140 mA on /35), transformer T1 for 220 V or 240 V, bridge D1 to D4 (4 x 1N4001), C1 2200 µF and fuse VL3 (T4A, /35 only) in the power unit; connector P4, chokes S696 and S697, C876 4700 µF, C816 15 µF and two L7805CV regulators (IC681, IC682) on the main board.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Cropped from page 7 of File:Philips Videopac G7000 Service Manual CS 75 068.pdf.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Philips
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Philips. Reproduced from the service manual for repair reference.
