File:PowerBook 500 Series PCMCIA module removal lever (Service Source).png
Size of this preview: 659 × 600 pixels. Other resolution: 824 × 750 pixels.
Original file (824 × 750 pixels, file size: 32 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

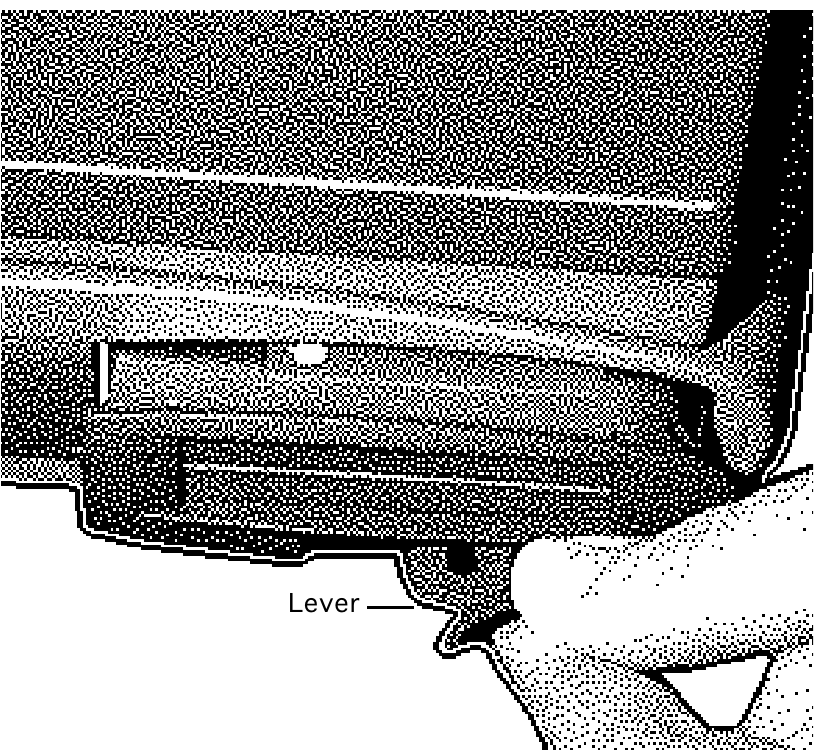

Apple's drawing of a PCMCIA Expansion Module being pulled from the left battery bay of a PowerBook 500 Series computer by the lever at its front. Rendered from File:PowerBook 500 Series Service Source.pdf (Apple Computer, PowerBook 500 Series Service Source, Take Apart, Battery/PCMCIA Module, p. 4; PDF p. 67).
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered at 200 dpi from the hosted Service Source PDF and cropped to the illustration (2026-10-04).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
