File:Power Mac G4 Gigabit Ethernet exploded view (Apple Service Source).png
Size of this preview: 424 × 599 pixels. Other resolution: 920 × 1,300 pixels.
Original file (920 × 1,300 pixels, file size: 381 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

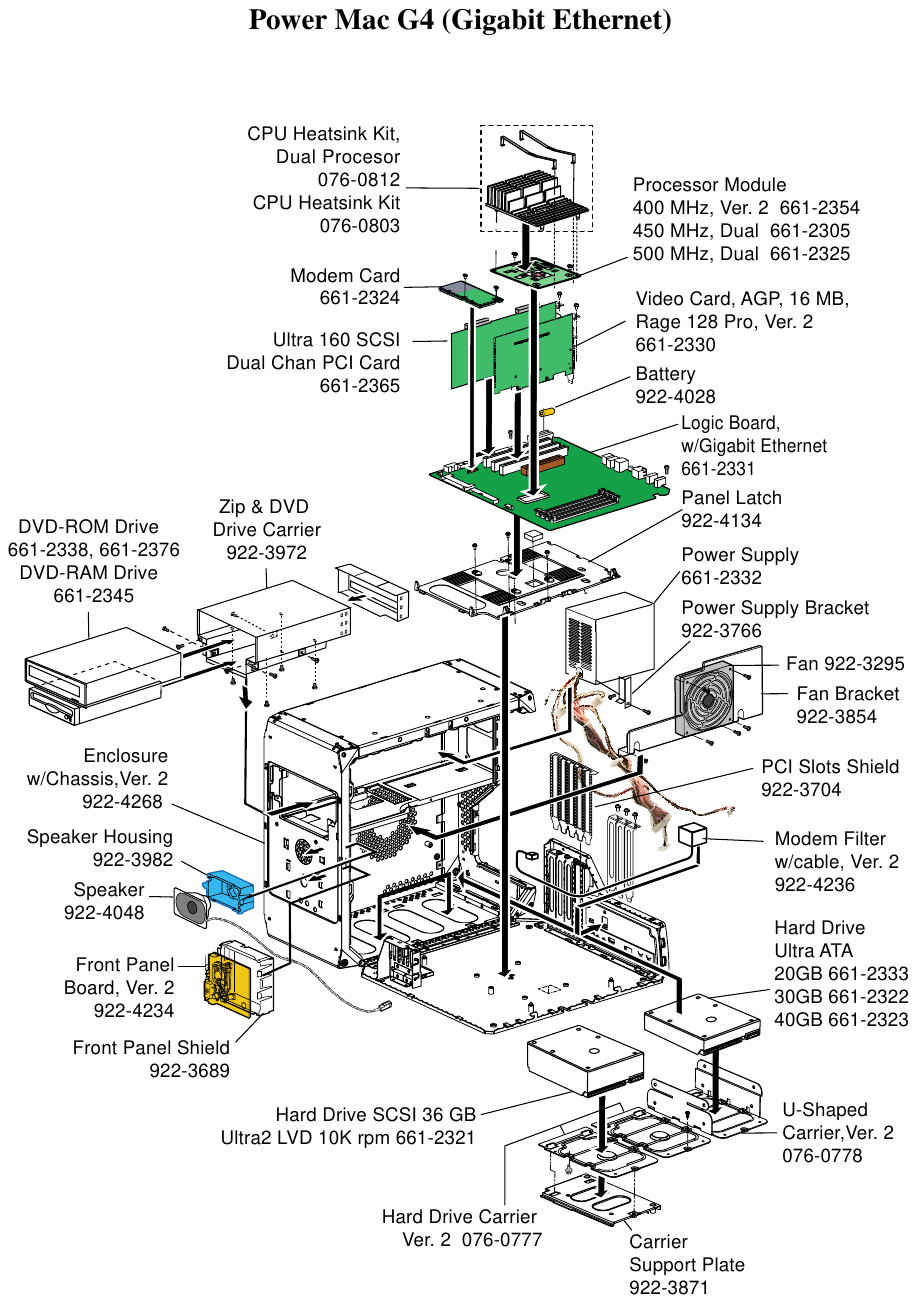

Apple's exploded view of the Power Mac G4 (Gigabit Ethernet) with service part numbers: processor modules, logic board 661-2331, power supply 661-2332, battery 922-4028, fan 922-3295, drives and enclosure.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from Apple's Power Mac G4/Macintosh Server G4 Service Source, Exploded View, p. 4 (PDF p. 279), hosted as File:Power Mac G4 and Macintosh Server G4 Service Source (2002).pdf.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Apple Computer, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Apple Computer, Inc. Reproduced from Apple's service documentation to identify the product and its parts, with the source cited.
