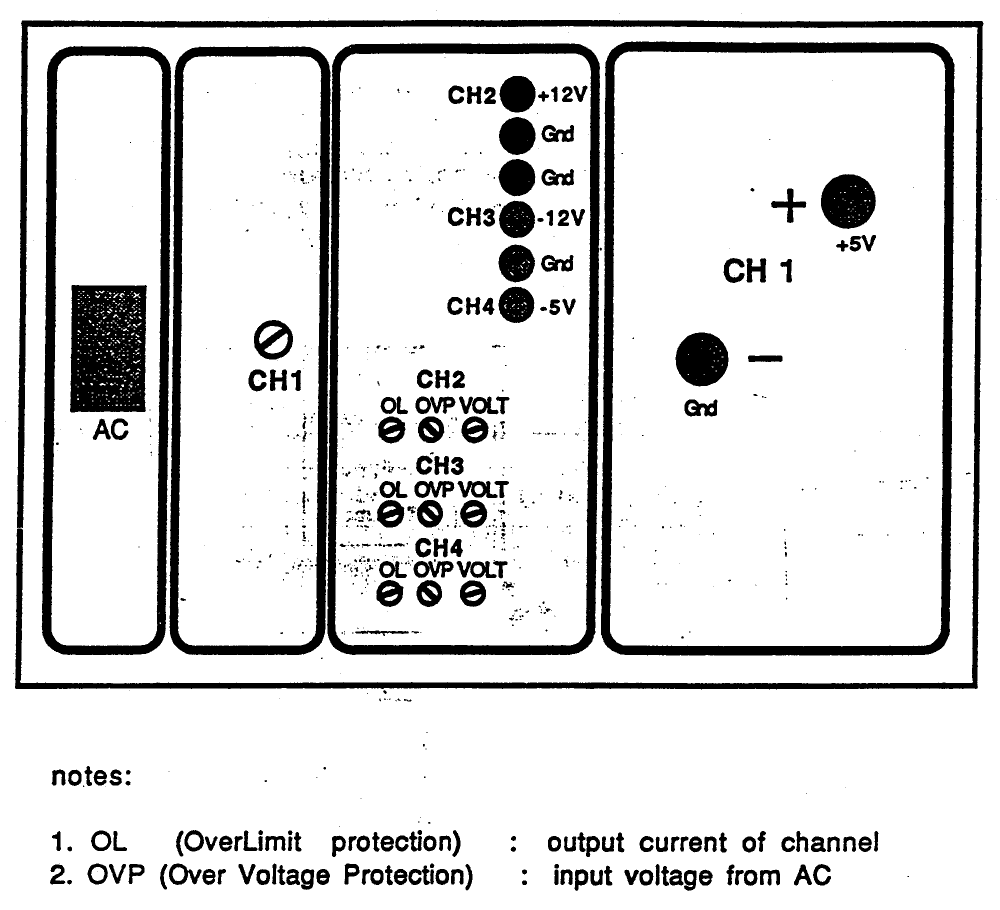

Line drawing of the IRIS 3000 power compartment: AC module and the four-channel power supply with its output terminals (CH1 +5 V, CH2 +12 V, CH3 -12 V, CH4 -5 V) and the OL, OVP and VOLT adjusters for each channel. Diagram 14 from SGI's IRIS 3000 Series Workstation Differences course, page 22, rendered at 150 dpi and cropped. Used on the SGI IRIS 3000 pages.
