File:SGI IRIS Crimson power-on switch settings (Figure 4-4).png
Size of this preview: 600 × 600 pixels. Other resolution: 910 × 910 pixels.
Original file (910 × 910 pixels, file size: 147 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

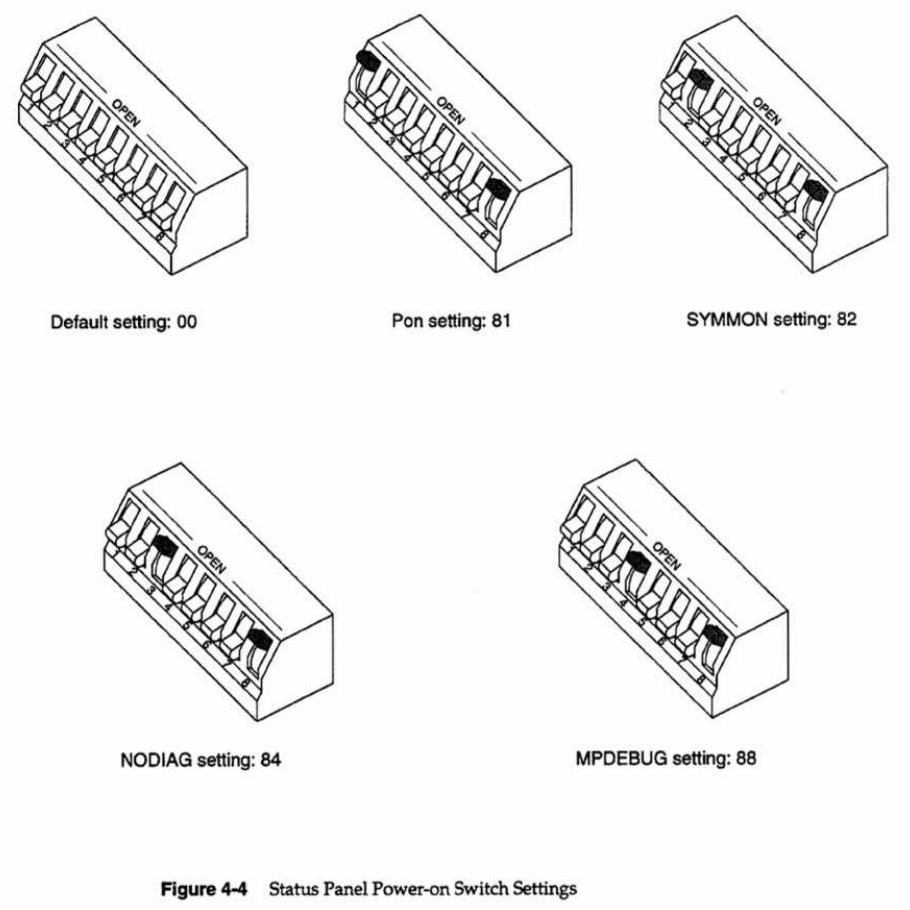

Figure 4-4, "Status Panel Power-on Switch Settings", from SGI's IRIS Crimson Installation and Configuration Guide (108-7034-020), page 4-9: the eight-way DIP switch on the PS3 status panel set for the default (00), Pon (81), SYMMON (82), NODIAG (84) and MPDEBUG (88) modes. Rendered from the scan at 150 dpi.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:SGI IRIS Crimson Installation and Configuration Guide (108-7034-020).pdf, page 4-9 (PDF page 45).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Silicon Graphics, Inc.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright 1992 Silicon Graphics, Inc. Reproduced from the manual for repair reference.
