File:SGI Origin 200 power supply removal.png
Size of this preview: 799 × 297 pixels. Other resolution: 1,229 × 457 pixels.
Original file (1,229 × 457 pixels, file size: 67 KB, MIME type: image/png)
Summary
[edit | edit source]

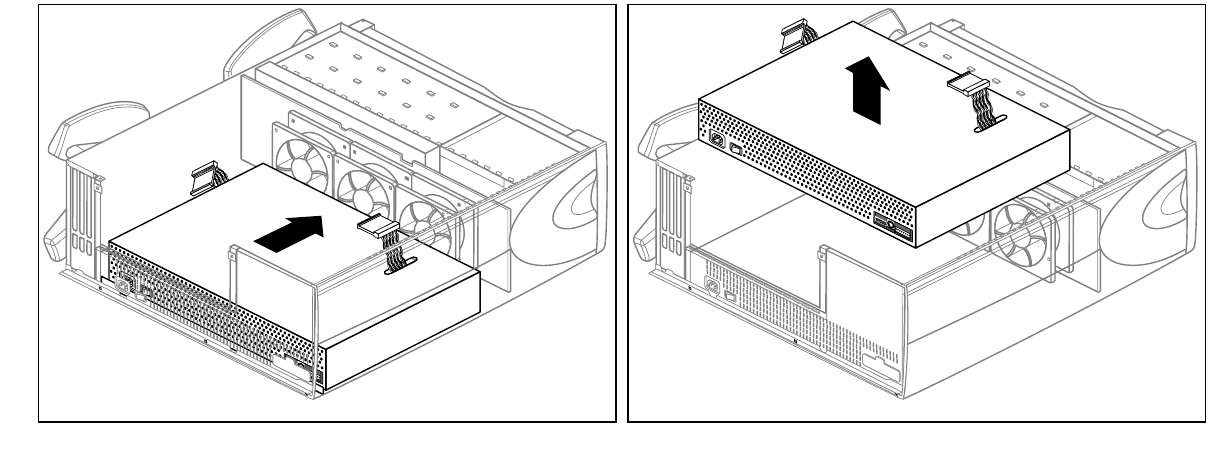

Two line drawings showing the Origin 200 power supply being slid forward to unlatch it from the chassis and then lifted out.
Source
[edit | edit source]
Rendered from SGI, Origin 200 and Origin 200 GIGAchannel Maintenance Guide, 007-3709-002, p. 91, Figure 5-15 (File:SGI Origin200 and Origin200 GIGAchannel Maintenance Guide (007-3709-002).pdf), 2026-10-21.
Author
[edit | edit source]
Silicon Graphics, Inc.
Licence
[edit | edit source]
Copyright Silicon Graphics, Inc. Hosted for preservation and repair reference, with the source cited.
