File:SGI Origin 3000 power bay power supply.png
Size of this preview: 800 × 316 pixels. Other resolution: 1,440 × 569 pixels.
Original file (1,440 × 569 pixels, file size: 70 KB, MIME type: image/png)
Summary
[edit | edit source]

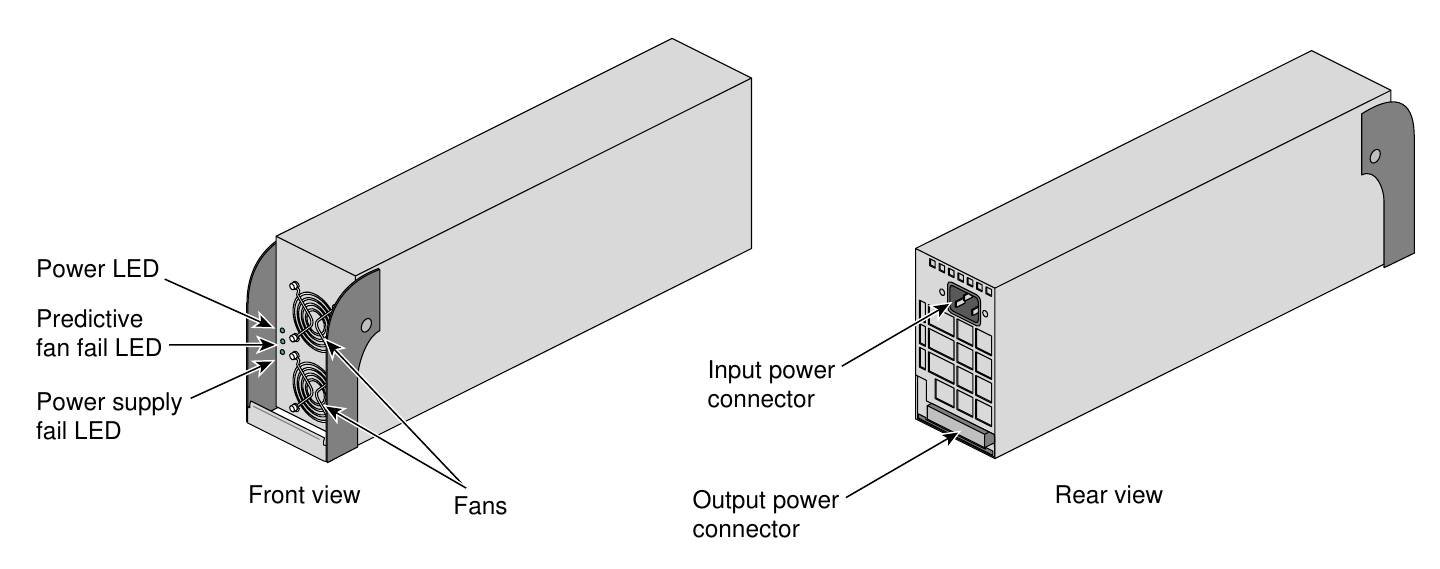

Drawing of an Origin 3000 power bay supply, front and rear: power LED, predictive fan fail LED, power supply fail LED, two fans, input and output power connectors.
Source
[edit | edit source]
Rendered from SGI, SGI Origin 3000 Series Owner's Guide, 007-4240-002, p. 205, Figure 10-4 (File:SGI Origin 3000 Series Owner's Guide (007-4240-002).pdf), 2026-10-22.
Author
[edit | edit source]
Silicon Graphics, Inc.
Licence
[edit | edit source]
Copyright Silicon Graphics, Inc. Hosted for preservation and repair reference, with the source cited.
