File:SGI Visual Workstation 320 rear panel (Owner's Guide Figure 1-2).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

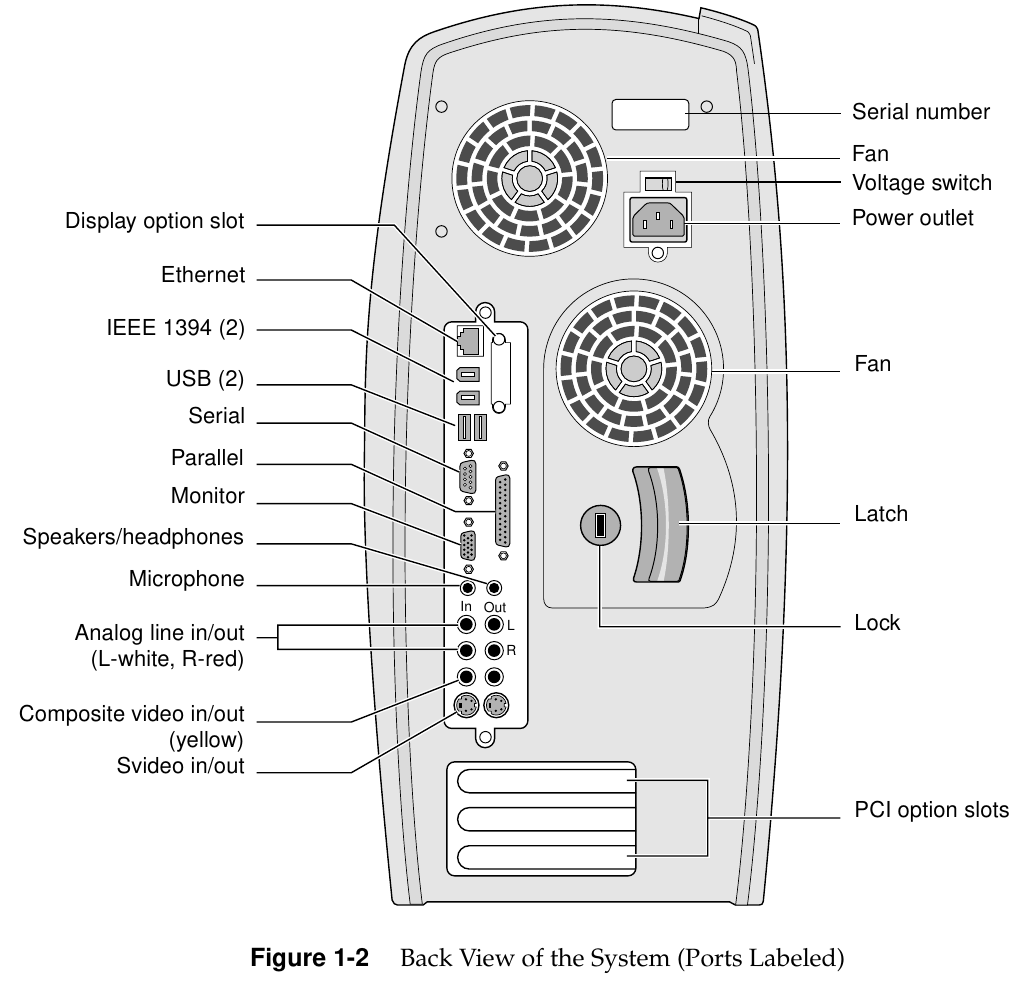

Labelled drawing of the back of the Silicon Graphics 320 visual workstation: the display option slot, Ethernet, two IEEE 1394 ports, two USB ports, serial, parallel and VGA monitor connectors, audio and composite/S-video jacks, the two rear fans, the voltage selector switch above the mains inlet, the side-cover latch and lock, and the three PCI slots. Figure 1-2 of SGI's Silicon Graphics 320 Visual Workstation Owner's Guide (007-3701-001, 1999), p. 3, rendered from the PDF at 200 dpi and cropped. See SGI Visual Workstation 320.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
File:SGI Visual Workstation 320 Owner's Guide (007-3701-001).pdf, from https://techpubs.jurassic.nl/library/manuals/3000/007-3701-001/pdf/007-3701-001.pdf (retrieved 2026-10-21).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Silicon Graphics, Inc. (illustrated by Kwong Liew, as credited in the guide).
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Silicon Graphics, Inc. Manufacturer documentation hosted for preservation and repair reference, with the source cited.
