File:Schematic Atari2600A 2000.png
Size of this preview: 777 × 599 pixels. Other resolution: 2,000 × 1,543 pixels.
Original file (2,000 × 1,543 pixels, file size: 317 KB, MIME type: image/png)
Summary
[edit | edit source]

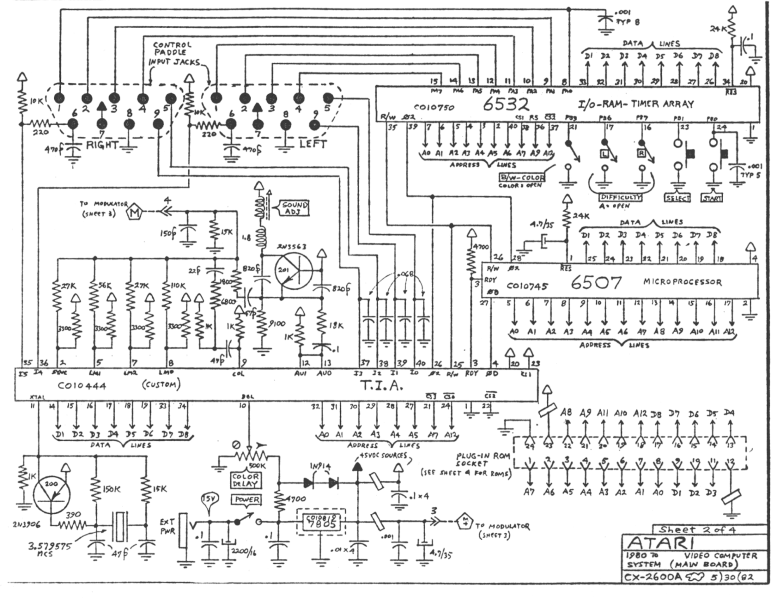

Atari's schematic of the Atari 2600A (CX2600A) console board, showing the 6507 microprocessor, 6532 RIOT and TIA. High-resolution version, 2000 pixels wide.
Source
[edit | edit source]
AtariAge schematics archive, https://www.atariage.com/2600/archives/schematics/ ; image file https://www.atariage.com/2600/archives/schematics/images/Schematic_Atari2600A_2000.png (byte-identical) (retrieved 2026-10-01).
Author
[edit | edit source]
Atari, Inc. (the drawings). AtariAge credits the scans to the Bomarc Collection.
Licence
[edit | edit source]
Copyright Atari, Inc. Not freely licensed. Hosted for preservation and repair reference, with the source cited.
