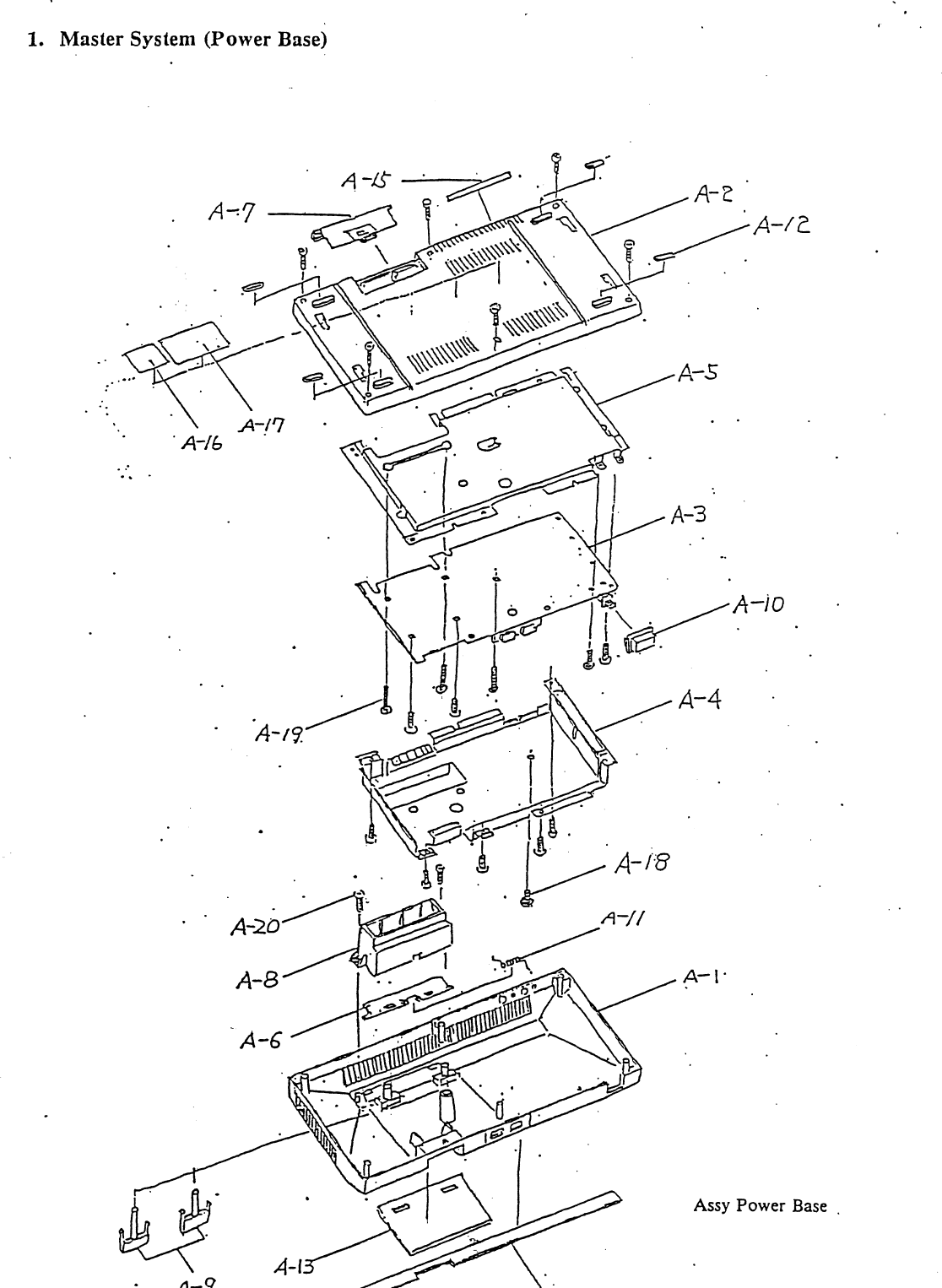

Sega's exploded view of the Master System (Power Base) assembly, items A-1 to A-20: top case, bottom case, IC board, top and bottom shield plates (the bottom one for West Germany only), lids, cover, buttons, power button and torsion spring, rubber feet, panels, seals and screws (A-18 M3 × 6 with washer, A-19 tapping screw 3 × 16 black, A-20 tapping screw 3 × 12).
Source
[edit | edit source]_exploded_view_(Sega).png&veaction=edit§ion=2){kind=link}
_exploded_view_(Sega).png&action=edit§ion=2){kind=link}
Sega Enterprises, Ltd., Sega Master System Service Manual (Power Base, PAL), p. 17 (PDF p. 18), with the parts list on p. 18, hosted on this wiki as File:Sega Master System (Model 1) Service Manual.pdf
Author
[edit | edit source]_exploded_view_(Sega).png&veaction=edit§ion=3){kind=link}
_exploded_view_(Sega).png&action=edit§ion=3){kind=link}
Sega Enterprises, Ltd.
Licence
[edit | edit source]_exploded_view_(Sega).png&veaction=edit§ion=4){kind=link}
_exploded_view_(Sega).png&action=edit§ion=4){kind=link}
Copyright Sega Enterprises, Ltd. Hosted for preservation and repair reference, with the source cited.
