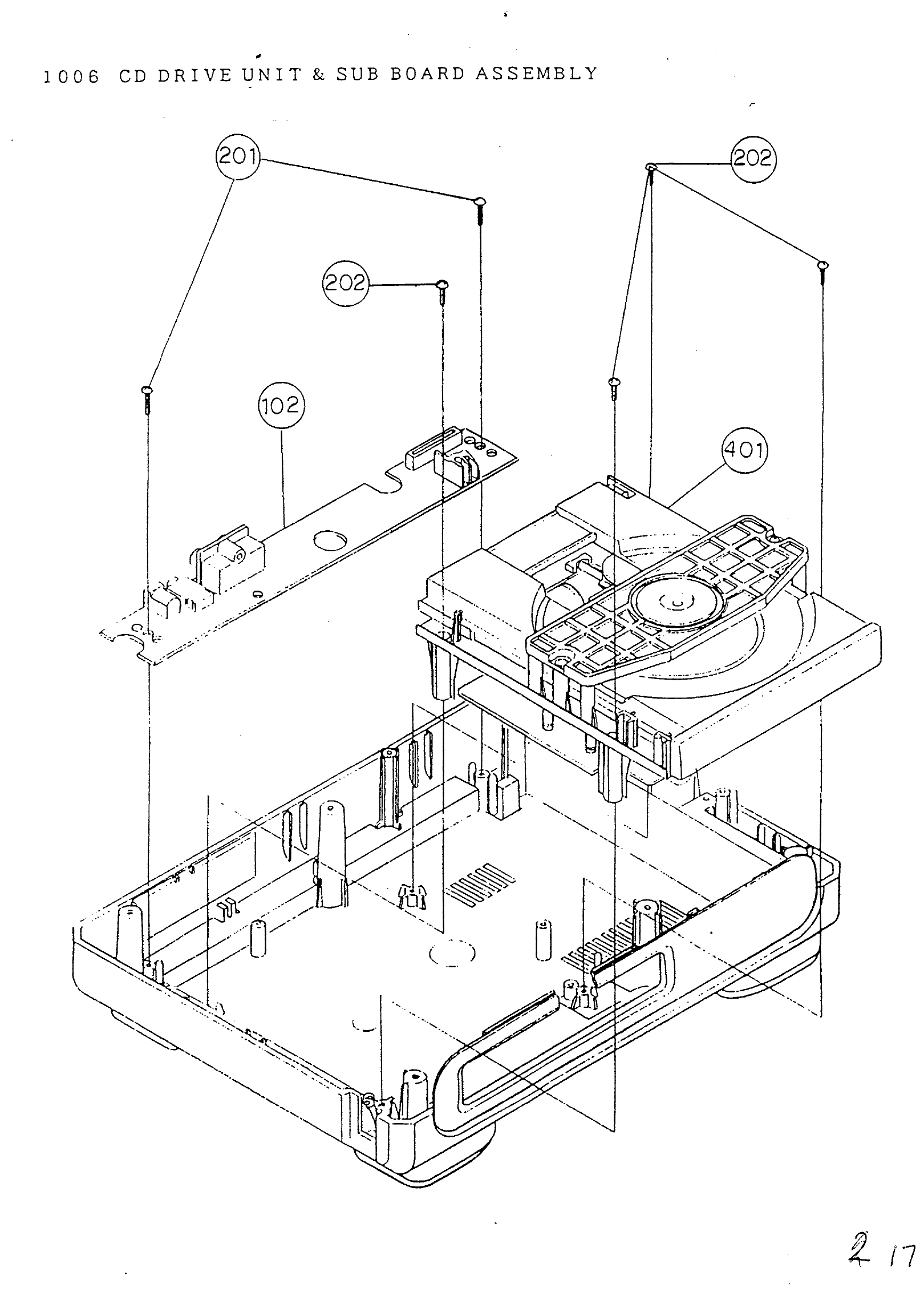

Sega's exploded drawing of assembly 1006, "CD drive unit & sub board assembly", for the Mega-CD (Sega CD Model 1): the sub board (102) and CD drive unit (401) above the bottom case, with the 201 (tapping screw 3 × 10 mm) and 202 (tapping screw 3 × 8 mm, black) screws.
Source
[edit | edit source]
Sega Enterprises, Ltd., MEGA-CD Maintenance Manual (Export), August 1992, Rev. A, section 2-2, assembly 1006, PDF page 20. Hosted on this wiki as File:Sega CD Service Manual.pdf; see Sega CD Service Manual.
Author
[edit | edit source]
Sega Enterprises, Ltd.
Licence
[edit | edit source]
Copyright Sega Enterprises, Ltd. Hosted for preservation and repair reference, with the source cited.
