File:Sega Mega Drive II VA0 PAL main board parts location.png
Summary
[edit | edit source]

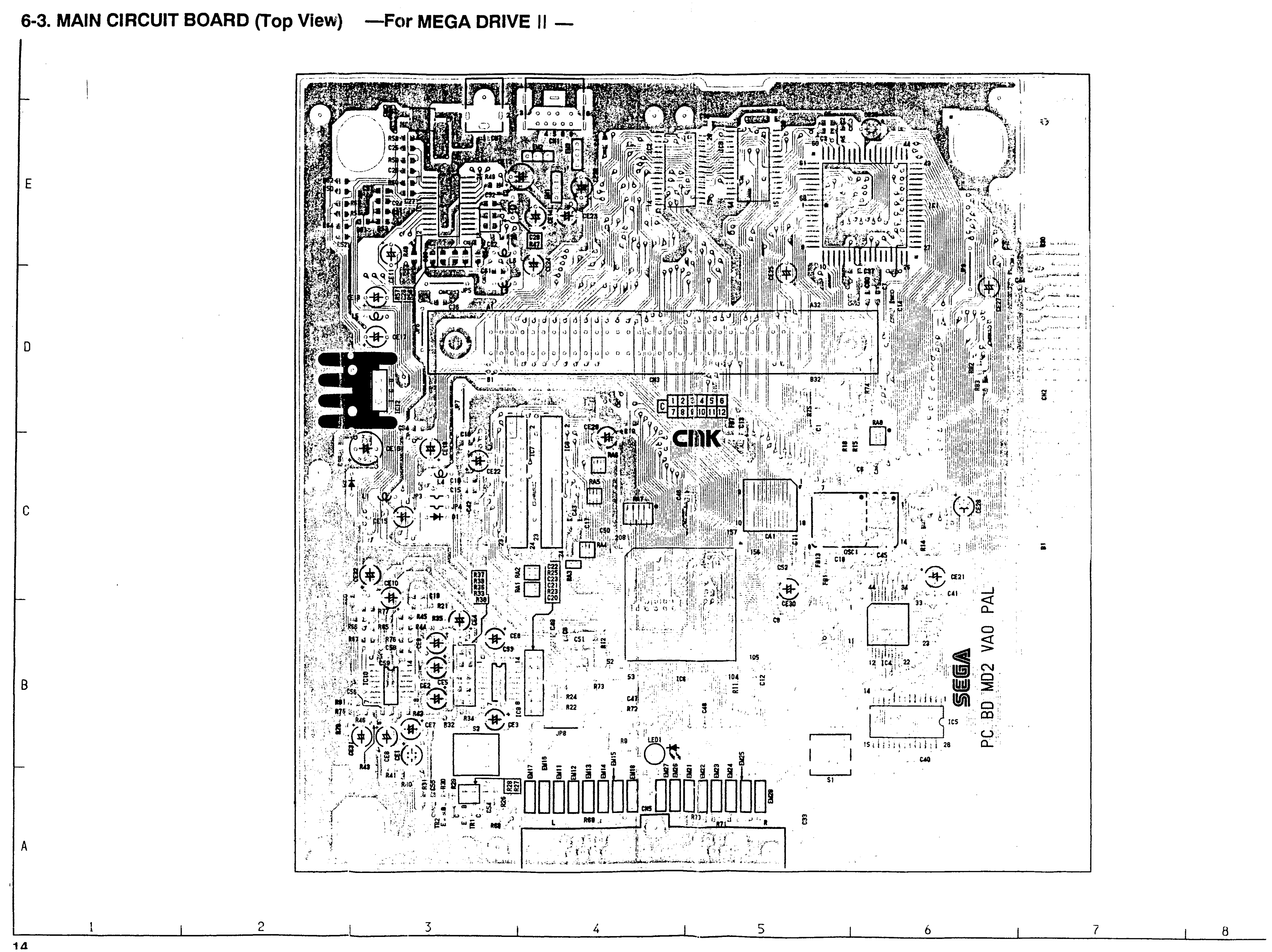

Sega's "6-3. Main Circuit Board (Top View), For Mega Drive II" drawing of the PC BD MD2 VA0 PAL board of the Sega Mega Drive / Genesis (Model 2), with the CE capacitor designators marked. Landmarks include IC12 (7805 regulator) on its heatsink at the left with CN7 (DC input) and CE16, CN3 (the 64-pin cartridge connector) across the centre, CN2 (expansion connector) at the right edge, CN5 (controller ports) along the bottom, and IC6 (315-5660).
Source
[edit | edit source]
Rendered from printed page 14 of the Service Manual, Genesis II / Mega Drive II (PAL-B/I/G, RGB), No. 001, June 1993, hosted as File:Sega service manual - genesis ii - mega drive ii pal-b-i-g rgb no 001 june 1993.pdf, converted to greyscale PNG. Nothing else is altered.
Author
[edit | edit source]
Sega Enterprises, Ltd.
Licence
[edit | edit source]
Copyright Sega Enterprises, Ltd. Not freely licensed. A single page from a Sega service manual, hosted on the same basis as the complete manual.
