File:Sega SG-1000 power and connector circuit (Enri).png
Size of this preview: 530 × 580 pixels.
Original file (530 × 580 pixels, file size: 9 KB, MIME type: image/png)
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

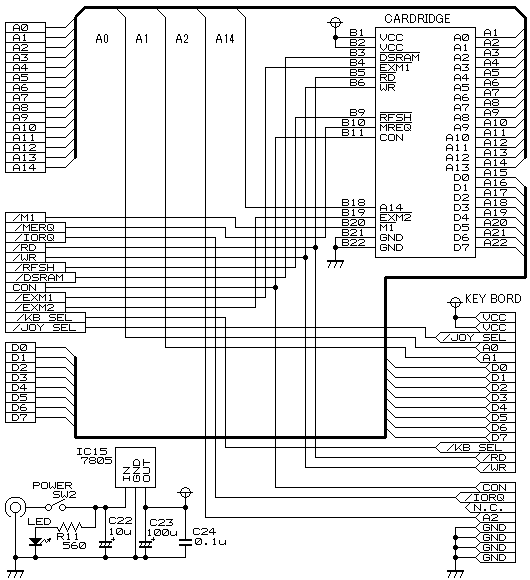

Enri's redrawn circuit of the SG-1000's cartridge connector, keyboard (expansion) connector and power input: DC jack, power switch SW2, power LED with R11 560 ohm, regulator IC15 7805 with C22 10 µF at the input, C23 100 µF and C24 0.1 µF at the output. Drawn by Enri from the console; not a Sega document.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Enri's Home Page, "SEGA SG-1000", http://cmpslv3.stars.ne.jp/Sg1000/EnrSG.htm, image sgcon.png (retrieved 2026-10-19).
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Enri
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
No licence is given on the source page. Copyright Enri. Hosted here, credited to its source, for repair reference.
