File:Sharp MZ-3500 self-check LED error codes (service manual).png
Summary
[edit | edit source].png&veaction=edit§ion=1){kind=link}
.png&action=edit§ion=1){kind=link}

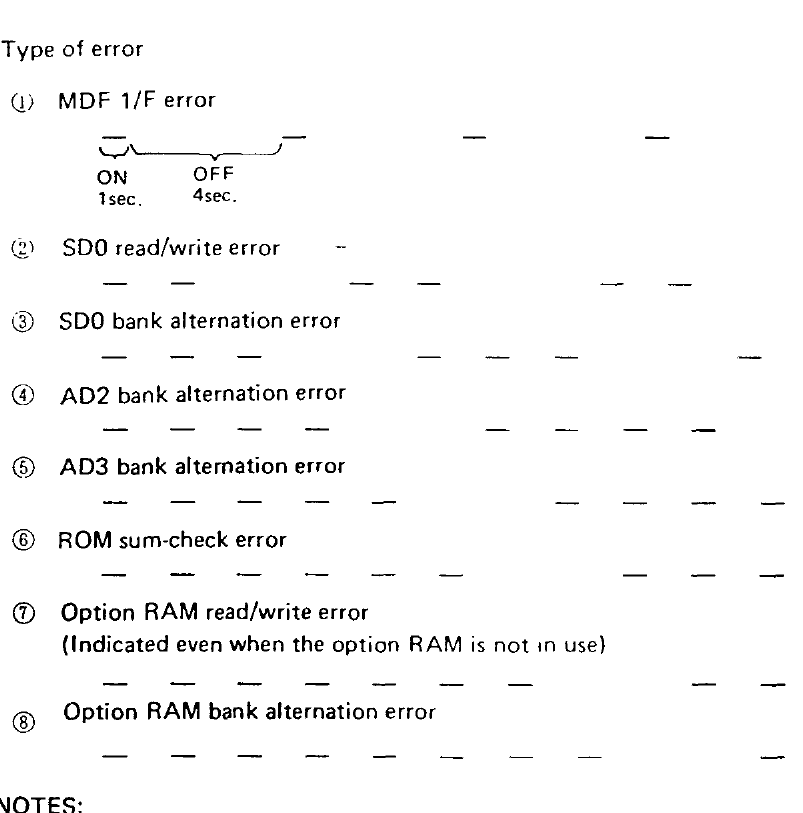

The LED blink patterns that report errors in the MZ-3500 main CPU self-check, from Sharp's service manual, section 11 "Self check functions" (printed page 95, PDF page 88 of File:Sharp MZ-3500 Service Manual.pdf). Each error is shown as a group of one-second flashes, one to eight, separated by four seconds off: MFD interface error, SD0 read/write error, SD0 bank alternation error, AD2 bank alternation error, AD3 bank alternation error, ROM sum-check error, option RAM read/write error and option RAM bank alternation error.
Source
[edit | edit source].png&veaction=edit§ion=2){kind=link}
.png&action=edit§ion=2){kind=link}
Rendered from page 88 of File:Sharp MZ-3500 Service Manual.pdf (Sharp code 00ZMZ3500SM/E), from https://www.sharpmz.net/mz-3500/download/mz3500sm.pdf, retrieved 2026-10-21.
Author
[edit | edit source].png&veaction=edit§ion=3){kind=link}
.png&action=edit§ion=3){kind=link}
Sharp Corporation.
Licence
[edit | edit source].png&veaction=edit§ion=4){kind=link}
.png&action=edit§ion=4){kind=link}
Copyright Sharp Corporation. Hosted for preservation and repair reference, with the source cited.
